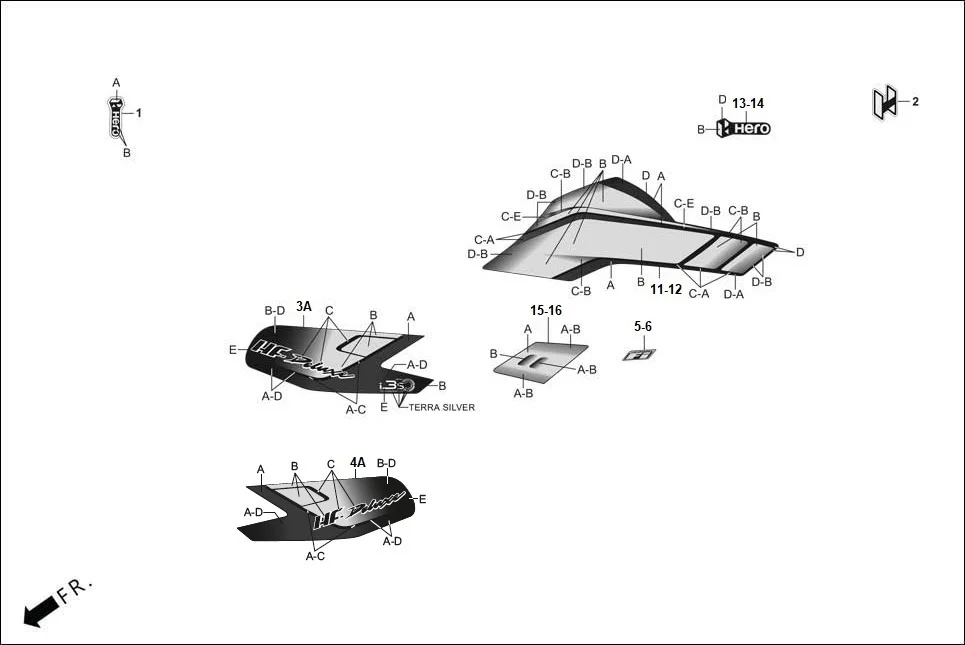

F-27-KICK - STRIPES/MARK
Hero HF DELUXE OBD2B(Apr., 2025) · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77238-ACK-000R | MARK CENTER RR COWL (TYPE-1) | 1 | |
| 1 | 77238-ACK-000X | MARK CENTER RR COWL (TYPE-4) | 1 | |
| 2 | 86830-AAF-400 | EMBLEM WINDSCREEN | 1 | |
| 2 | 86830-ACK-000X | EMBLEM, ‘H’ MARK | 1 | |
| 3 | 86115-ACK-400U | STRIPE A R SIDE COVER (TYPE-4) | 1 | |
| 3 | 86115-ACK-400R | STRIPE A R SIDE COVER (TYPE-1) | 1 | |
| 3 | 86115-ACK-400S | STRIPE A R SIDE COVER (TYPE-2) | 1 | |
| 3 | 86115-ACK-400T | STRIPE A R SIDE COVER (TYPE-3) | 1 | |
| 4 | 86116-ACK-400U | STRIPE A L SIDE COVER (TYPE-4) | 1 | |
| 4 | 86116-ACK-400R | STRIPE A L SIDE COVER (TYPE-1) | 1 | |
| 4 | 86116-ACK-400S | STRIPE A L SIDE COVER (TYPE-2) | 1 | |
| 4 | 86116-ACK-400T | STRIPE A L SIDE COVER (TYPE-3) | 1 | |
| 5 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 6 | 85404-AAC-800 | PROGRAMMED FI MARK LEFT | 1 | |
| 11 | 86516-ACK-400U | STRIPE A R FUEL TANK (TYPE-4) | 1 | |
| 11 | 86516-ACK-400R | STRIPE A R FUEL TANK (TYPE-1) | 1 | |
| 11 | 86516-ACK-400S | STRIPE A R FUEL TANK (TYPE-2) | 1 | |
| 11 | 86516-ACK-400T | STRIPE A R FUEL TANK (TYPE-3) | 1 | |
| 12 | 86517-ACK-400U | STRIPE A L FUEL TANK (TYPE-4) | 1 | |
| 12 | 86517-ACK-400R | STRIPE A L FUEL TANK (TYPE-1) | 1 | |
| 12 | 86517-ACK-400S | STRIPE A L FUEL TANK (TYPE-2) | 1 | |
| 12 | 86517-ACK-400T | STRIPE A L FUEL TANK (TYPE-3) | 1 | |
| 13 | 86518-ACK-400R | STRIPE B R FUEL TANK (TYPE-1) | 1 | |
| 13 | 86518-ACK-400S | STRIPE B R FUEL TANK (TYPE-2) | 1 | |
| 14 | 86519-ACK-400R | STRIPE B L FUEL TANK (TYPE-1) | 1 | |
| 14 | 86519-ACK-400S | STRIPE B L FUEL TANK (TYPE-2) | 1 | |
| 15 | 86117-ACK-400R | STRIPE B R SIDE COVER (TYPE-1) | 1 | |
| 16 | 86118-ACK-400R | STRIPE B L SIDE COVER (TYPE-1) | 1 | |
