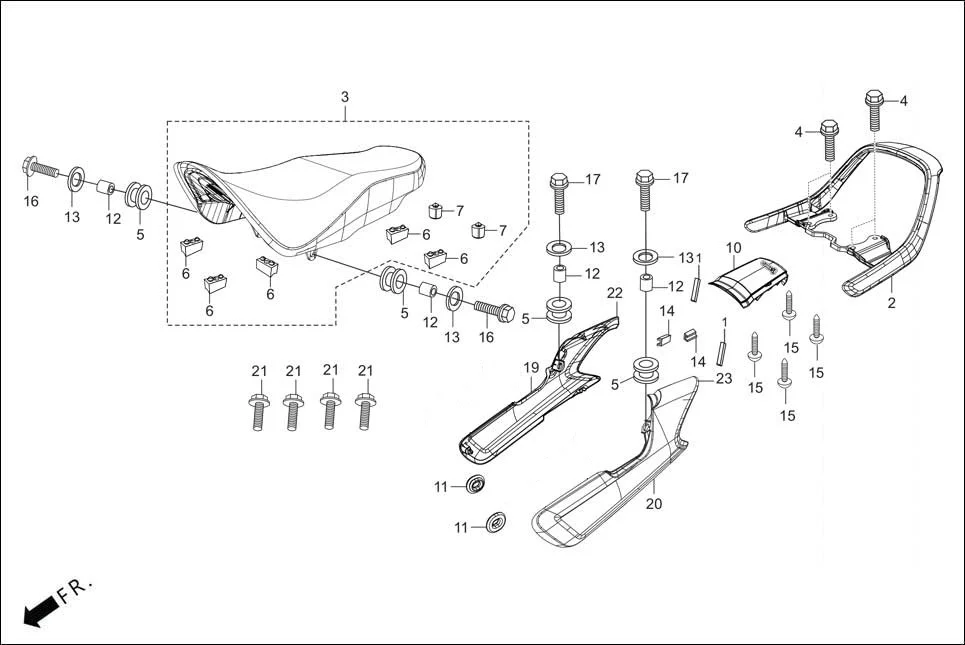

F-12-SELF - SEAT ASSY./ GRIP REAR
Hero HF DELUXE OBD2B(Apr., 2025) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 50400-AAH-100 | GRIP RR | 1 | |
| 17 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 21 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
