HERO OEM Part

32100-AEC-220

HARNESS, WIRE (SELF i3S)

Qty Required: 1 Ref #9 in Assembly

Part of Assembly

F-24-SELF_i3S
WIRE HARNESS/BATTERY
30 parts in this assembly

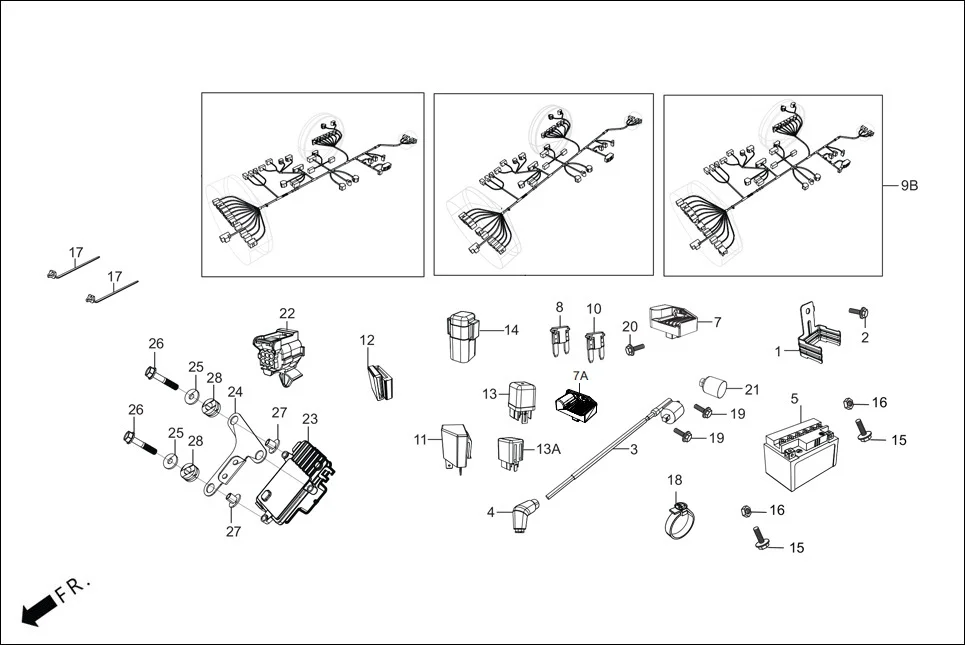

Assembly Diagram

F-24-SELF_i3S WIRE HARNESS/BATTERY diagram showing 32100-AEC-220
Ref #9

Supported Vehicles1

HHERO HF DLX -BF THB(Sept.,2024)
HERO HF DLX -BF THB(Sept.,2024)
Current

Related Parts

50150-AAH-810
STAY, ST/RELAY
95701-06012-00
BOLT, FLANGE, 6X12
30510-ACK-00099
COIL ASSY., IGN.
30700-ACK-00099
CAP ASSY NOISE SUPPRESSOR
31500-KVT-801
BATTERY, ASSY.
31500-AAN-L01
BATTERY ASSY 3AH
View all 30 parts in this assembly
