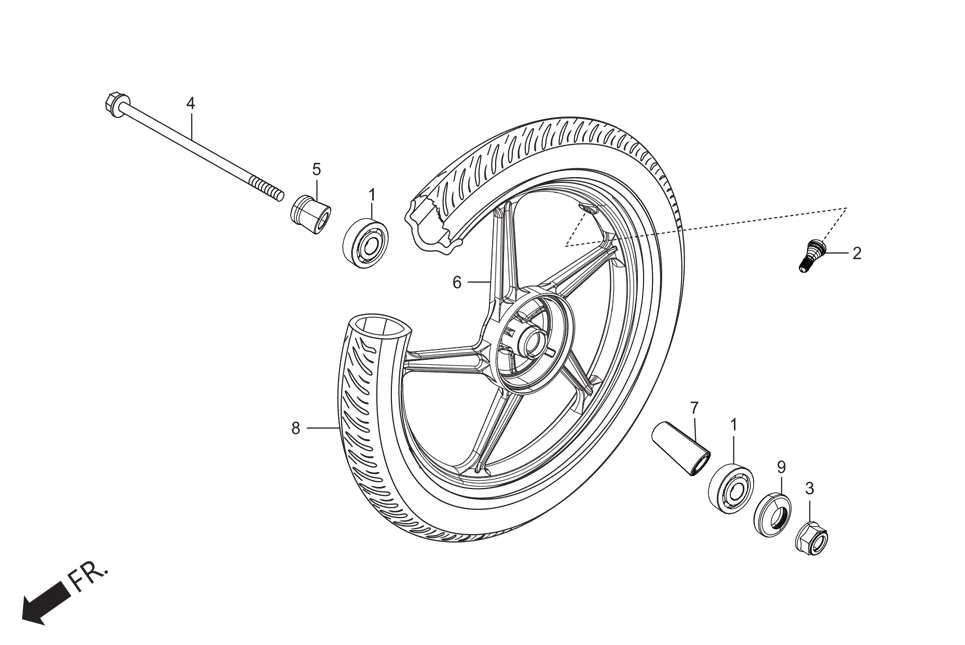

F-9A-SELF - FRONT WHEEL
Hero HF DELUXE (JUNE,2025) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 6 | 44601-AAE-23099 | WHEEL COMP. FRONT | 1 | |
| 6 | 44601-AAE-331 | WHEEL COMP FRONT | 1 | |
Hero HF DELUXE (JUNE,2025) · 3 parts
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 6 | 44601-AAE-23099 | WHEEL COMP. FRONT | 1 | |
| 6 | 44601-AAE-331 | WHEEL COMP FRONT | 1 | |
