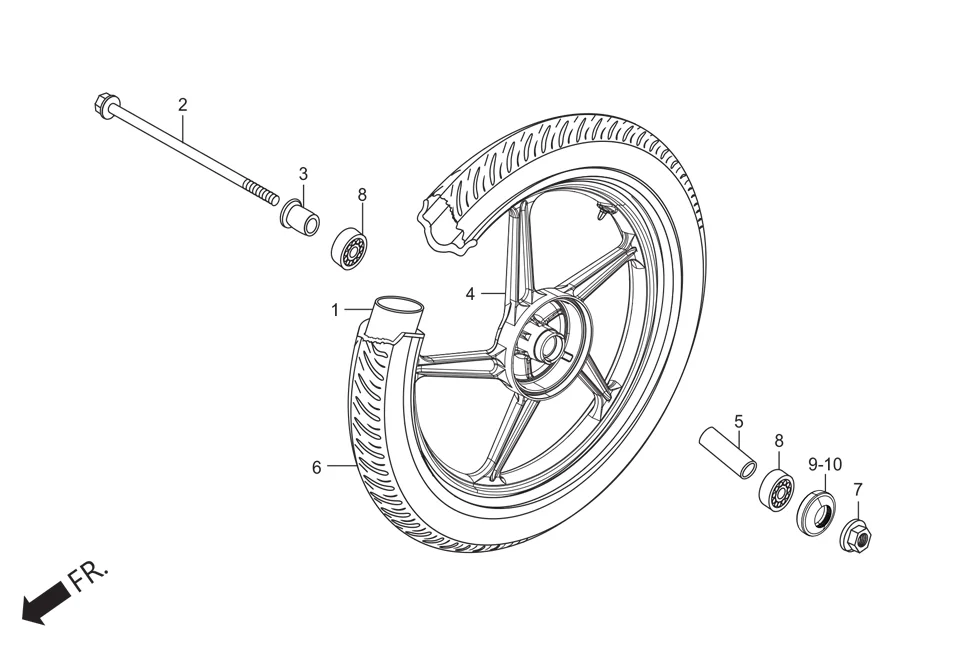

F-9-KICK - FRONT WHEEL
Hero HF DELUXE (JUNE,2025) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42712-KCS-920 | TUBE, TYRE (2.75 X 18) | 1 | |
| 1 | 44712-AAN-201 | TUBE TIRE | 1 | |
| 1 | 44712-KWH-752 | TUBE TYRE | 1 | |
| 2 | 44301-KTR-700 | AXLE, FR. WHEEL | 1 | |
| 3 | 44311-KRC-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 4 | 44601-AAH-J02 | WHEEL COMP FR | 1 | |
| 4 | 44601-AAH-J01 | WHEEL COMP FR | 1 | |
| 4 | 44601-AAH-J03 | WHEEL COMP FR | 1 | |
| 4 | 44601-AAH-J04 | WHEEL COMP FR | 1 | |
| 4 | 44601-ACK-031 | WHEEL COMP FRONT | 1 | |
| 5 | 44620-400-000 | COLLAR, FRONT DISTANCE | 1 | |
| 6 | 44711-KFN-850R | TYRE, FR. (2.75-18 42P) | 1 | |
| 6 | 44711-KTC-902 | TYRE FR. (2.75-18-42P) | 1 | |
| 6 | 44711-AAH-A01 | TYRE FRONT | 1 | |
| 6 | 44711-AAD-001 | TIRE, FR. (KENDA) | 1 | |
| 6 | 44711-AAN-60099 | TYRE FR | 1 | |
| 7 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 7 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 8 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
| 9 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
