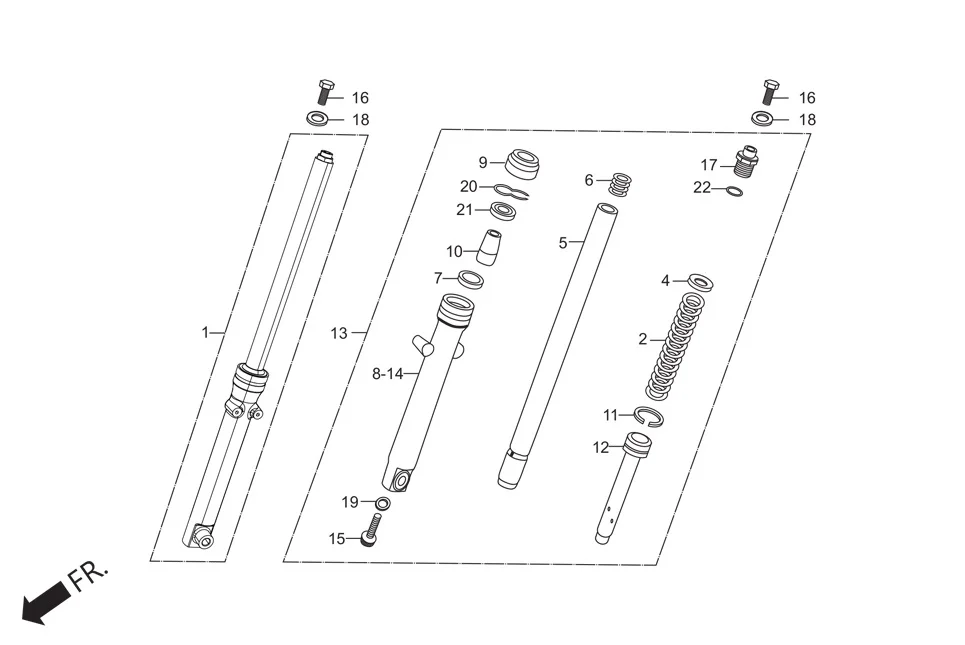

F-7-SELF - FRONT FORK
Hero HF DELUXE (JUNE,2025) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51400-KST-A11 | FORK ASSY., RFORNT | 1 | |
| 4 | 51403-447-730 | JOINT, SPRING | 2 | |
| 8 | 51420-KST-A11 | CASE, RFR. BOTTOM | 1 | |
| 13 | 51500-KST-A11 | FORK ASSY., LFRONT | 1 | |
| 14 | 51520-KST-A11 | CASE, LFR. BOTTOM | 1 | |
| 14 | 51520-AAD-501 | CASE COMP L FR BOTTOM | 1 | |
