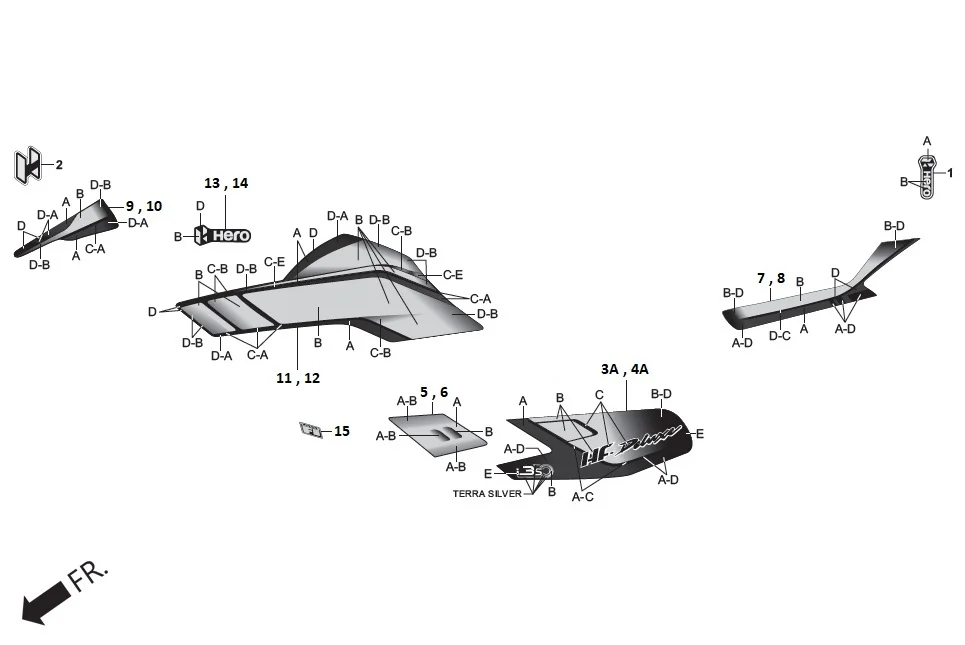

F-27A-SELF-I3S - STRIPES/MARK
Hero HF DELUXE (JUNE,2025) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 3 | 86115-ACK-420R | STRIPE A R SIDE COVER (TYPE-1) | 1 | |
| 3 | 86115-ACK-420S | STRIPE A R SIDE COVER (TYPE-2) | 1 | |
| 3 | 86115-ACK-420T | STRIPE A R SIDE COVER (TYPE-3) | 1 | |
| 3 | 86115-ACK-420U | STRIPE A R SIDE COVER (TYPE-4) | 1 | |
| 4 | 86116-ACK-420R | STRIPE A L SIDE COVER (TYPE-1) | 1 | |
| 4 | 86116-ACK-420S | STRIPE A L SIDE COVER (TYPE-2) | 1 | |
| 4 | 86116-ACK-420T | STRIPE A L SIDE COVER (TYPE-3) | 1 | |
| 4 | 86116-ACK-420U | STRIPE A L SIDE COVER (TYPE-4) | 1 | |
