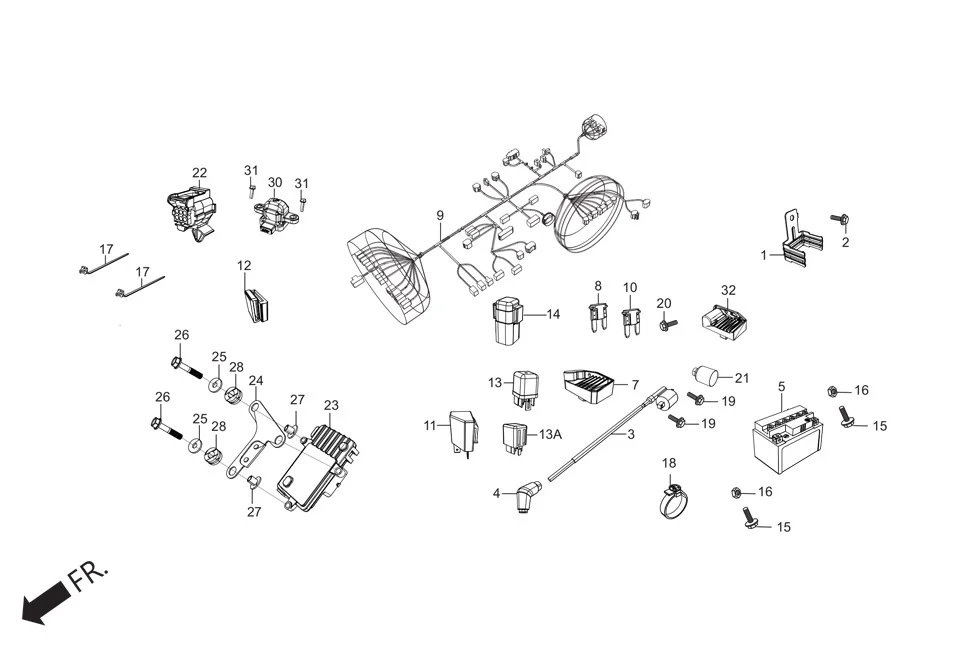

F-24-SELF - WIRE HARNESS/BATTERY
Hero HF DELUXE (JUNE,2025) · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50150-AAH-810 | STAY, ST/RELAY | 1 | |
| 2 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 3 | 30510-ACK-00099 | COIL ASSY., IGN. | 1 | |
| 4 | 30700-ACK-00099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 5 | 31500-AAN-L01 | BATTERY ASSY 3AH | 1 | |
| 5 | 31500-KVT-941 | BATTERY ASSY.,MF4 | 1 | |
| 7 | 31600-AAW-B01 | REG. RECT. COMP | 1 | |
| 8 | 98215-HMC-000 | MINI FUSE 15A | 1 | |
| 9 | AECBA7R001000G | HARNESS, WIRE | 1 | |
| 10 | 98210-HMC-000 | MINI FUSE 10A | 1 | |
| 11 | 38301-AAE-20099 | RELAY COMP., WINKER | 1 | |
| 11 | 38301-AAH-A01 | RELAY COMP. WINKER | 1 | |
| 12 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 12 | 38306-AAH-A01 | SUSP. WINKER RELAY | 1 | |
| 13 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
| 14 | 38506-AAH-A01 | SUSP. START RELAY | 1 | |
| 14 | 38506-KWA-840 | SUSP. START RELAY | 1 | |
| 15 | 90122-KRY-971 | BOLT, BATTERY TERMINAL | 2 | |
| 16 | 90306-KRY-971 | NUT, BATTERY TERMINAL | 2 | |
| 17 | 91540-AAN-410 | CLIP, BAND HARN | 2 | |
| 18 | 91541-ABG-000 | CLIP BAND | 1 | |
| 19 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 2 | |
| 20 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 1 | |
| 21 | 32108-KE8-000 | COVER ,CONNECTOR | 1 | |
| 23 | AECBA7F001000G | UNIT COMP ECU | 1 | |
| 24 | 50177-AAC-L00 | BRKT B ECU | 1 | |
| 25 | 90417-041-000 | WASHER, GEAR SHIFT DRUM SIDE | 1 | |
| 26 | 95701-06030-00 | BOLT, FLANGE, 6X30 | 1 | |
| 27 | 90502-AAC-L00 | COLLAR RUBBER CUSHION | 1 | |
| 28 | 17622-GB7-900 | RUBBER, CUSHION | 1 | |
| 29 | 32108-KVH-900 | COVER, CONNECTOR | 1 | |
| 30 | 35160-AAE-31099 | SENSOR ASSY BANK ANGLE | 1 | |
| 30 | 35160-AAE-312 | SENSOR ASSY BANK ANGLE | 1 | |
| 31 | SFBLFH261G | BOLT FLANGE HEX M5X0.8X18X8.8_AB | 2 | |
