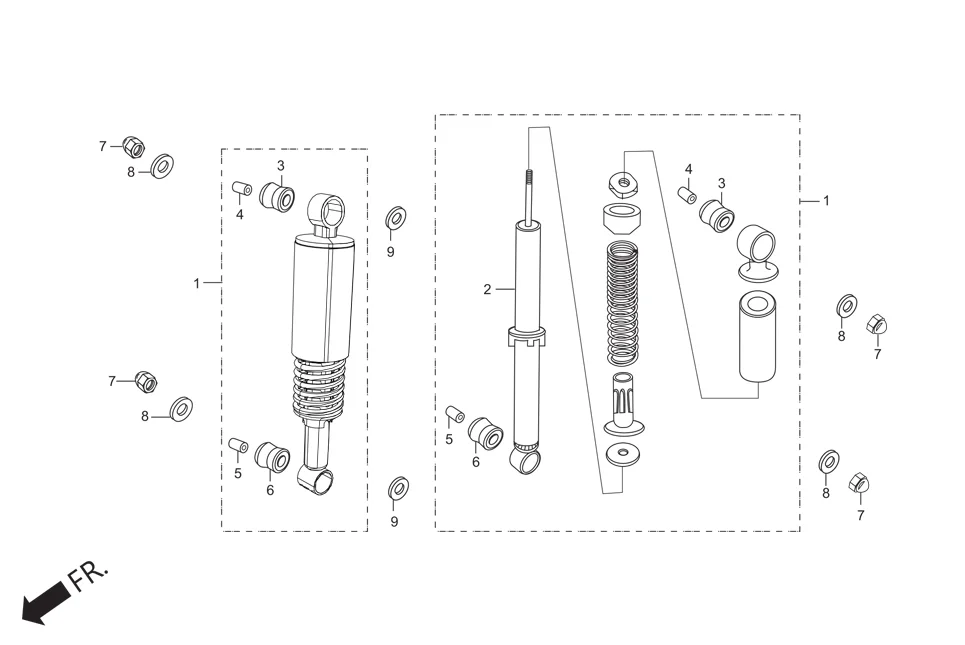

F-20 - REAR CUSHION
Hero HF DELUXE (JUNE,2025) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-AAH-0099R | CUSHION ASSY RR (BLACK NH-1) | 2 | |
| 1 | 52400-AAH-001R | CUSHION ASSY., REAR (BLACK) | 2 | |
| 1 | 52400-AAH-000U | CUSHION ASSY. RR (CBR, R-195C) | 2 | |
| 1 | 52400-AAH-001U | CUSHION ASSY., REAR (CANDY BLAZING RED) | 2 | |
| 2 | 52410-AAH-000 | DAMPER COMP. RR. | 2 | |
| 2 | 52410-AAH-001 | DAMPER COMP, REAR | 2 | |
| 3 | 52489-399-600 | BUSH ,RUBBER (UPPER) | 2 | |
| 3 | 52489-AAD-501 | BUSH, RUBBER (UPPER) | 2 | |
| 4 | 52486-056-000 | COLLAR, RUBBER BUSH (UPPER) | 2 | |
| 4 | 52486-AAD-501 | COLLAR, RUBBER BUSH (UPPER) | 2 | |
| 5 | 52486-KAG-900 | COLLAR ,RUBBER BUSH (UNDER) | 2 | |
| 6 | 52495-098-000 | BUSH, RUBBER (UNDER) | 2 | |
| 6 | 52495-AAD-501 | BUSH RUBBER(UNDER) | 2 | |
| 7 | 94021-10000-0S | NUT, HEX., CAP, 10MM | 4 | |
| 8 | 90551-178-000 | WASHER,SPL., 10MM | 4 | |
| 9 | 94101-12000 | WASHER, PLAIN, 12MM | 2 | |
