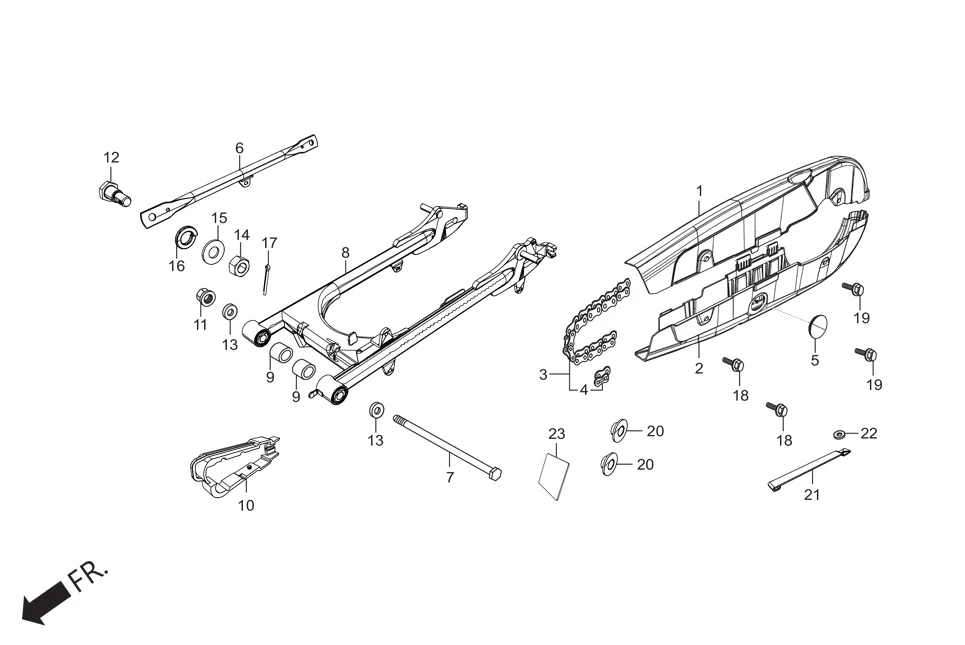

F-19 - REAR FORK/CHAIN CASE
Hero HF DELUXE (JUNE,2025) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-AAT-000 | CHAIN CASE UPPER | 1 | |
| 2 | 40520-AAT-000 | CHAIN CASE LOWER | 1 | |
| 3 | 40530-KST-944 | CHAIN, DRIVE (420-108) | 1 | |
| 4 | 40531-KST-944 | JOINT RJ DRIVE CHAIN | 1 | |
| 4 | 40531-KTE-910 | JOINT RJ.DRIVE CHAIN | 1 | |
| 4 | 40531-ADH-001 | JOINT RJ DRIVE CHAIN | 1 | |
| 5 | 40545-ABA-000 | CAP, CHAIN PEEP HOLE | 1 | |
| 6 | 43431-AAH-F00 | ARM, RR. BRAKE STOPPER | 1 | |
| 7 | 52101-KST-940 | BOLT, SWING ARM PIVOT | 1 | |
| 8 | 52110-ACK-200 | SWINGARM COMP., REAR. | 1 | |
| 9 | 52147-KTC-900 | RUBBER BUSH, RR. FORK PIVOT | 2 | |
| 10 | 52170-KST-940 | SLIDER CHAIN | 1 | |
| 12 | 90133-331-770 | BOLT, HEX., 8MM | 1 | |
| 13 | 90183-KTC-900 | WASHER, SPL., 12 MM | 2 | |
| 16 | 94111-10000 | WASHER, SPRING, 10MM | 1 | |
| 18 | 90111-ABA-000 | BOLT, FLANGE, 6MM | 2 | |
| 19 | 95701-06010-07 | BOLT, FLANGE, 6 X 10 | 2 | |
| 20 | 90501-AAT-000 | COLLAR CHAIN CASE | 2 | |
| 21 | 40524-AAT-000 | PLATE CHAIN CASE LOWER | 1 | |
| 22 | 94101-04000 | WASHER, PLAIN 4 MM | 1 | |
| 23 | 52133-AAH-F00 | FILM, PROTECTOR | 1 | |
