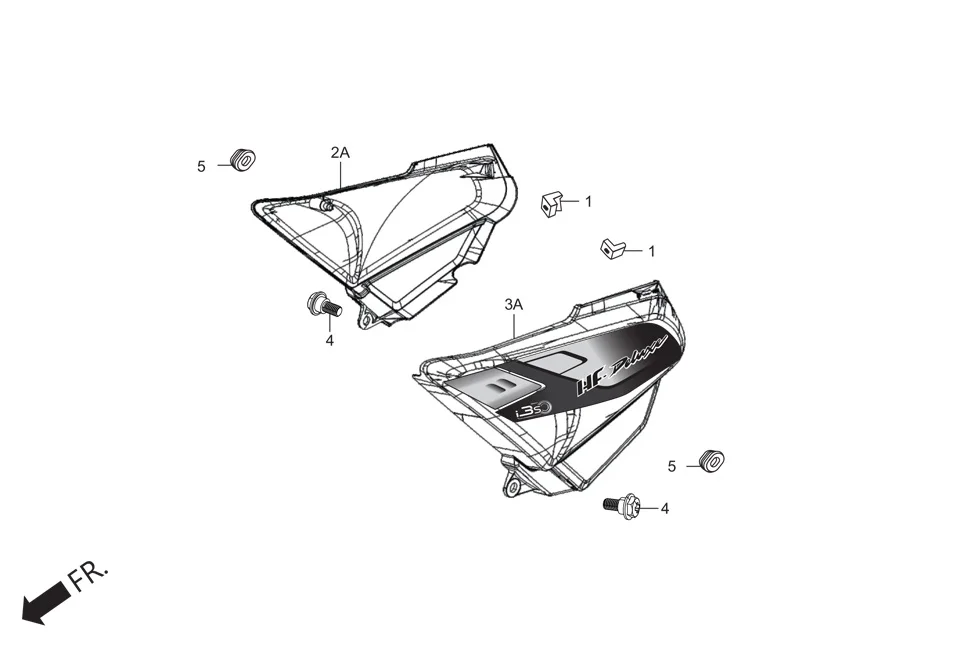

F-14A-SELF-I3S - SIDE COVER
Hero HF DELUXE (JUNE,2025) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 2 | 83500-ACK-420R | SET R. SIDE COVER (BLACK (TYPE-1) NH-1) | 1 | |
| 2 | 83500-ACK-420S | SET R. SIDE COVER (BLACK (TYPE-2) NH-1) | 1 | |
| 2 | 83500-ACK-420T | SET R. SIDE COVER (BLACK (TYPE-3) NH-1) | 1 | |
| 2 | 83500-ACK-420U | SET R. SIDE COVER (CANDY BLAZING RED) | 1 | |
| 3 | 83600-ACK-420R | SET L. SIDE COVER (BLACK (TYPE-1) NH-1) | 1 | |
| 3 | 83600-ACK-420S | SET L. SIDE COVER (BLACK (TYPE-2) NH-1) | 1 | |
| 3 | 83600-ACK-420T | SET L. SIDE COVER (BLACK (TYPE-3) NH-1) | 1 | |
| 3 | 83600-ACK-420U | SET L. SIDE COVER (CANDY BLAZING RED) | 1 | |
| 4 | 90113-KST-940 | BOLT SIDE COVER | 2 | |
| 5 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
