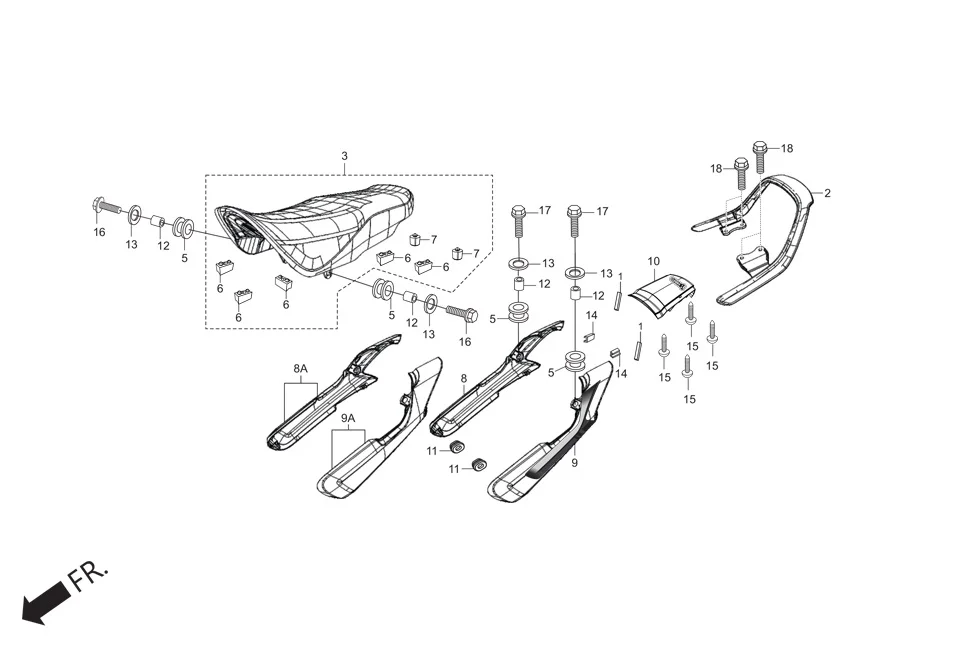

F-12A-SELF-I3S - SEAT ASSY./ GRIP REAR
Hero HF DELUXE (JUNE,2025) · 28 parts
Parts in This Assembly (28)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33705-KCC-870 | CUSHION, TAIL LIGHT | 2 | |
| 2 | 50400-AAH-100 | GRIP RR | 1 | |
| 3 | 77200-KST-940 | SEAT COMP., DOUBLE | 1 | |
| 5 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 4 | |
| 6 | 77204-KCC-900 | RUBBER, `A SEAT SETTING | 5 | |
| 7 | 77206-KCC-900 | RUBBER, SEAT CUSHION | 2 | |
| 8 | 77210-ACK-410R | SET, R RR COWL (BLACK (TYPE-1) NH-1) | 1 | |
| 8 | 77210-ACK-410S | SET, R RR COWL (BLACK (TYPE-2) NH-1) | 1 | |
| 8 | 77210-ACK-410T | SET, R RR COWL (BLACK (TYPE-3) NH-1) | 1 | |
| 8 | 77210-ACK-410U | SET, R RR COWL (CANDY BLAZING RED) | 1 | |
| 8 | 77246-AAH-100R | COWL R REAR SUB. ASSY. (BLACK NH-1) | 1 | |
| 8 | 77246-AAH-100U | COWL R RR (CANDY BLAZING RED) | 1 | |
| 9 | 77220-ACK-410R | SET, L RR COWL (BLACK (TYPE-1) NH-1) | 1 | |
| 9 | 77220-ACK-410S | SET, L RR COWL (BLACK (TYPE-2) NH-1) | 1 | |
| 9 | 77220-ACK-410T | SET, L RR COWL (BLACK (TYPE-3) NH-1) | 1 | |
| 9 | 77220-ACK-410U | SET, L RR COWL (CANDY BLAZING RED) | 1 | |
| 9 | 77256-AAH-100R | COWL L REAR SUB. ASSY. (BLACK NH-1) | 1 | |
| 9 | 77256-AAH-100U | COWL L RR (CANDY BLAZING RED) | 1 | |
| 10 | 77230-ACK-000R | SET, CENTER RR COWL (BLACK NH-1). | 1 | |
| 10 | 77230-ACK-000X | SET, CENTER RR COWL (CANDY BLAZING RED). | 1 | |
| 11 | 83551-300-000 | GROMMET, AIR CLEANER CASE | 2 | |
| 12 | 84702-KCC-900 | COLLAR, STAY NO. PLATE SET | 4 | |
| 13 | 90563-355-000 | WASHER, WHEEL, 6 MM | 4 | |
| 14 | 90810-KCC-910 | RUBBER, STOPPER | 2 | |
| 15 | 93903-34310 | SCREW TAPPING M4X12 | 4 | |
| 16 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 2 | |
| 17 | 95701-06022-00 | BOLT, FLANGE, SH. 6 X 22 | 2 | |
| 18 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
