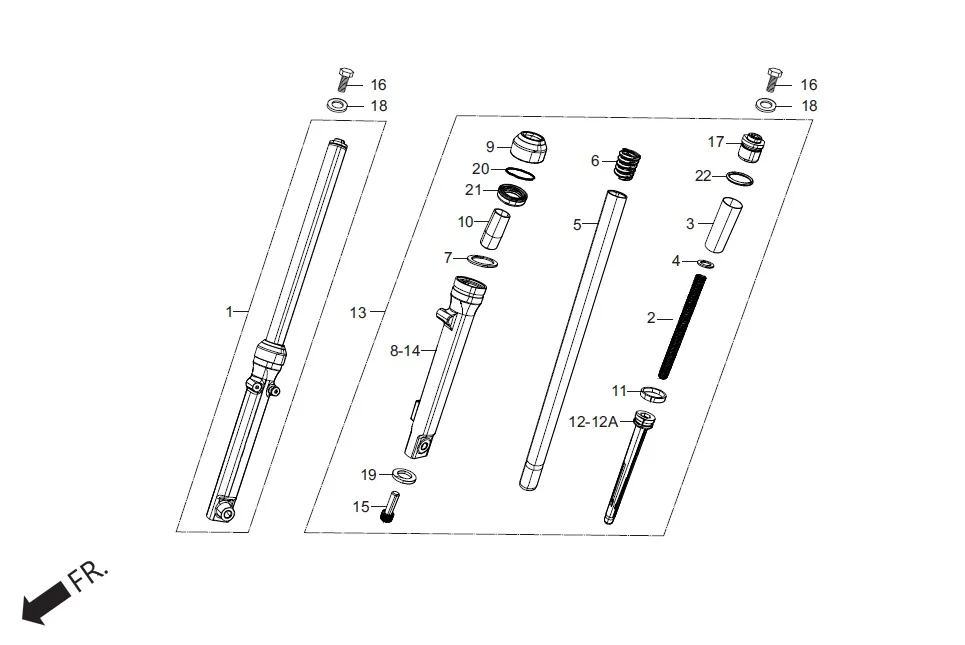

F-7 - FRONT FORK
Hero HF DELUXE BLACK (HMCM) OBD2_PHB(July,2025) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 12 | 51440-KTR-901 | PIPE, SEAT | 2 | |
| 14 | 51520-KTR-A01 | CASE, LFR. BOTTOM | 1 | |
| 15 | 90116-AAD-501 | BOLT SOCKET 8 MM | 2 | |
| 16 | 90123-KRM-860 | BOLT, FR. FORK | 2 | |
| 17 | 90123-KST-941 | BOLT, A FR. FORK | 2 | |
| 18 | 90521-292-000 | WASHER, PLAIN, 10.3 MM | 2 | |
| 21 | 91255-AAD-501 | OIL SEAL 30X42X11 | 2 | |
| 21 | 91255-169-000R | OIL SEAL, 30 X 42 X 11 | 2 | |
