F-27A-STRIPES/MARK

HeroHF DELUXE BLACK (HMCM) OBD2_PHB(July,2025) · 1 parts

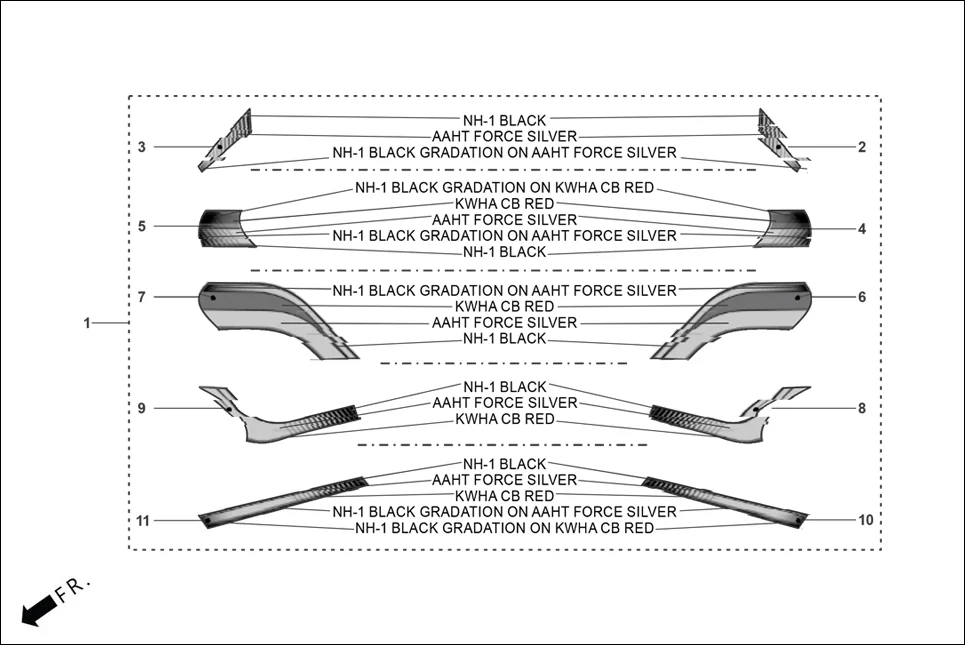

F-27A STRIPES/MARK assembly diagram for Hero HF DELUXE BLACK (HMCM) OBD2_PHB(July,2025)

Parts in This Assembly (1)

Ref #Part NumberDescriptionQty
199641-ACK-K00STRIPE KIT1
