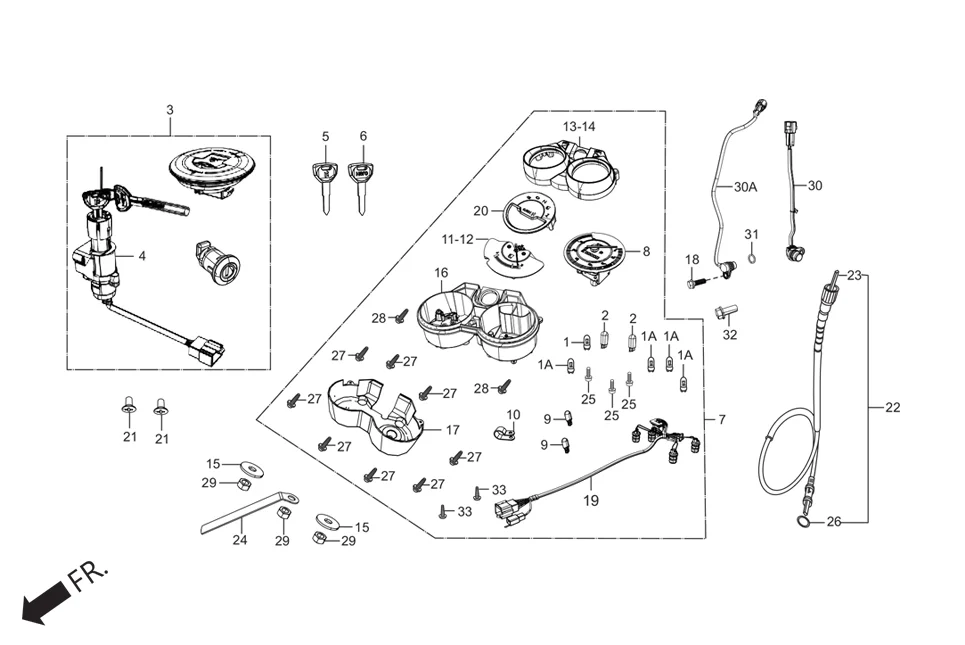

F-2 - SPEEDOMETER/CABLE/KEY SET

Hero HF DELUXE BLACK (HMCM) OBD2_PHB(July,2025) · 38 parts

Parts in This Assembly (38)

Ref #	Part Number	Description	Qty
1	34910-KWA-930	BULB WEDGE BASE (T10 12V, 1.7W)	1
1	34910-AAJ-601	BULB WEDGE BASE (T10 12V 1.7W)	4
2	34910-AAJ-600	BULB WEDGE BASE (T10 12V 1.7W)	2
2	34920-AAG-300	BULB WEDGE BASE (T10 12V 3W)	2
3	35010-ACK-40099	KEY SET	1
4	35100-ACK-00099	SWITCH ASSY. COMB & LOCK	1
4	35100-ACK-002	SW. ASSY COMB & LOCK	1
5	35121-AAC-801	KEY BLANK NO.1	1
5	35121-AAF-400	KEY BLANK NO.1	1
6	35122-AAF-400	KEY BLANK NO.2	1
6	35122-AAC-801	KEY BLANK NO.2	1
9	34908-AAN-411	BULB 12V-W3W	2
10	37215-MB6-830	CLAMP	1
13	AFAAA7Y001000G	UPPER CASE ASSY	1
13	AFAAA7Y009000G	CASE UPPER ASSY	1
14	37610-AAH-102	CASE UPPER ASSY.	1
15	94103-06700	WASHER, PLAIN, 6 MM	2
16	37612-ADH-B11	CASE UNDER ASSY	1
16	37612-ADH-B12	CASE UNDER ASSY	1
17	37614-KCC-900	COVER, UNDER CASE	1
19	37619-ACK-01099	SOCKET COMP (SELF)	1
20	37652-ADH-B31	DIAL DESIGN PILOT ASSY	1
20	37652-ADH-B32	DIAL DESIGN PILOT ASSY	1
21	90164-KPL-900	SCREW, FLAT, U LOCK, 6X12	2
22	44830-AAJ-000	CABLE COMP. SPEEDOMETER	1
23	44831-KST-940	CABLE, INNER	1
24	61317-KCC-900	GUIDE `A	1
25	90108-KWH-961	SCREW, WASH, 3X22	3
26	91352-GAZ-930	O-RING 8.5X11.5	1
27	93913-24310	SCREW TAPPING 4X14	8
28	90035-KST-900	SCREW,WASH,4 X 8	2
29	94001-06070-0S	NUT, HEX., 6 MM	3
30	37700-ACK-02099	SPEED SENSOR ASSY	1
30	37700-AAE-312	SPEED SENSOR ASSY., (SELF I3S)	1
31	37701-AAG-A01	O RING SPEED SENSOR	1
31	37701-AAN-B01	ORING SPEED SENSOR	1
31	37701-AAC-812	O RING SPEED SENSOR (SELF I3S)	1
33	93903-22480	SCREW TAPPING 3 X 16	2
