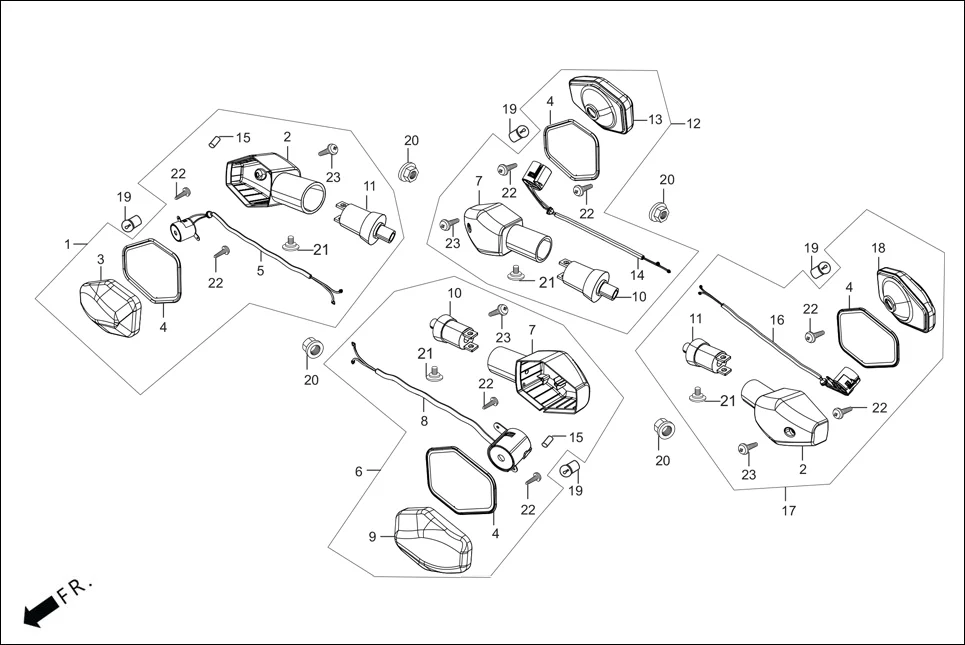

F-22 - WINKERS
Hero HF Deluxe(Nov,2022) · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3340B-AAH-001 | WINKER ASSY, R FR (W/O BULB) | 1 | |
| 2 | 33401-KTR-901 | BASE WINKER R | 2 | |
| 2 | 33401-AAH-A0099 | BASE WINKER R. | 2 | |
| 3 | 33403-KTR-841 | LENS COMP., R WINKER | 1 | |
| 3 | 33403-AAH-A0099 | LENS COMP. R WINKER | 2 | |
| 4 | 33406-KTR-901 | SEAL, GASKET. | 4 | |
| 4 | 33406-AAH-A0099 | SEAL GASKET | 4 | |
| 5 | 33415-AAH-001 | SOCKET COMP, R FR WINKER | 1 | |
| 5 | 33415-AAH-A0099 | SOCKET COMP. R WINKER. | 1 | |
| 6 | 3345B-AAH-001 | WINKER ASSY, L FR (W/O BULB) | 1 | |
| 7 | 33451-KTR-901 | BASE WINKER L | 2 | |
| 7 | 33451-AAH-A0099 | BASE WINKER L. | 2 | |
| 8 | 33465-AAH-001 | SOCKET COMP, L FR WINKER | 1 | |
| 8 | 33465-AAH-A0099 | SOCKET COMP.L WINKER. | 2 | |
| 9 | 33453-KTR-841 | LENS COMP., L WINKER | 1 | |
| 9 | 33453-AAH-A0099 | LENS COMP.L WINKER. | 2 | |
| 10 | 33491-KRC-900 | STAY COMP., WINKER | 2 | |
| 11 | 33491-KAF-000 | STAY COMP., WINKER | 2 | |
| 12 | 3360B-AAJ-101 | WINKER ASSY R RR (W/O BULB) | 1 | |
| 13 | 33603-KTR-841 | LENS COMP., R WINKER | 1 | |
| 14 | 33615-AAJ-101 | SOCKET COMP, R RR WINKER | 1 | |
| 14 | 33615-AAH-A0099 | SOCKET COMP.R WINKER. | 1 | |
| 15 | 33650-KAF-000 | COLLAR FR. WINKER LIGHT | 2 | |
| 16 | 33665-AAJ-101 | SOCKET COMP, L RR WINKER | 1 | |
| 16 | 33665-AAH-A0099 | SOCKET COMP.L WINKER. | 1 | |
| 17 | 3365B-AAJ-101 | WINKER ASSY, L RR (W/O BULB) | 1 | |
| 18 | 33653-KTR-841 | LENS COMP., L WINKER | 1 | |
| 19 | 34930-AAC-700 | BULB(12V 10W) AMBER | 4 | |
| 20 | 94050-10000 | NUT, FLANGE, 10MM | 4 | |
| 21 | 90380-MB2-000 | SCREW, SPECIAL, 6 X 8 | 4 | |
| 22 | 93901-22310 | SCREW, TAPPING, 3 X 12 | 8 | |
| 23 | 93903-34480 | SCREW, TAPPING, 4X 16 | 4 | |
