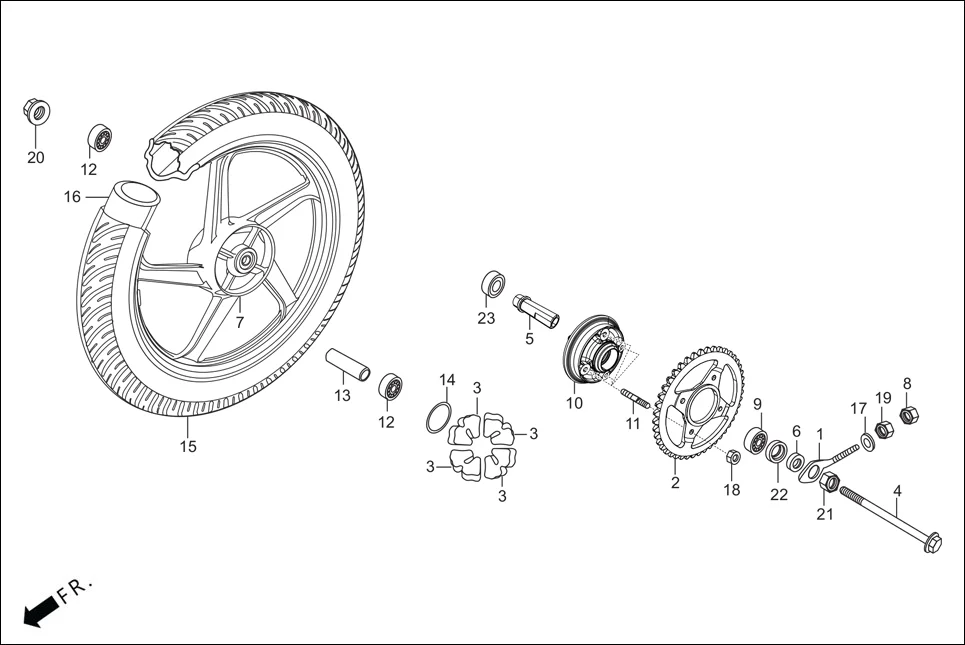

F-11 - REAR WHEEL
Hero HF Deluxe(Nov,2022) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40544-198-900 | ADJUSTER, L CHAIN | 1 | |
| 2 | 41201-KST-940 | SPROCKET, FINAL DRIVEN (44T) | 1 | |
| 3 | 41241-AAN-410 | DAMPER, REAR WHEEL | 4 | |
| 4 | 42301-ABA-000 | AXLE RR WHEEL | 1 | |
| 5 | 42303-AAH-100 | SLEEVE REAR WHEEL | 1 | |
| 6 | 42304-198-900 | COLLAR, RR.AXLE SLEEVE | 1 | |
| 7 | K42426AACAH00S | KIT, WHEEL COMP REAR | 1 | |
| 9 | 96150-62030-10 | BEARING, BALL RADIAL, 6203 (UU) | 1 | |
| 10 | 42611-KWA-940 | FLANGE FINAL DRIVEN | 1 | |
| 11 | 42615-AAC-400 | BOLT, STUD 8X35.5 | 4 | |
| 13 | 42620-KTR-700 | COLLAR, REAR AXLE DISTANCE | 1 | |
| 14 | 91304-704-000 | O-RING 42 MM | 1 | |
| 15 | 42711-KTC-901 | TYRE, RR. (2.75-18-48P) | 1 | |
| 15 | 42711-KTC-902 | TYRE, RR. (2.75-18-48P) | 1 | |
| 15 | 42711-AAH-A01 | TYRE REAR | 1 | |
| 15 | 42711-KWH-961 | TYRE RR (CEAT) | 1 | |
| 16 | 42712-AAH-A01 | TUBE REAR | 1 | |
| 18 | 90309-357-000 | NUT, HEX .,8MM | 4 | |
| 21 | 90307-001-000 | NUT ,RR. AXLE SLEEVE | 1 | |
| 22 | 90753-029-000 | OIL SEAL, 27 X 40 X 6 | 1 | |
| 23 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
