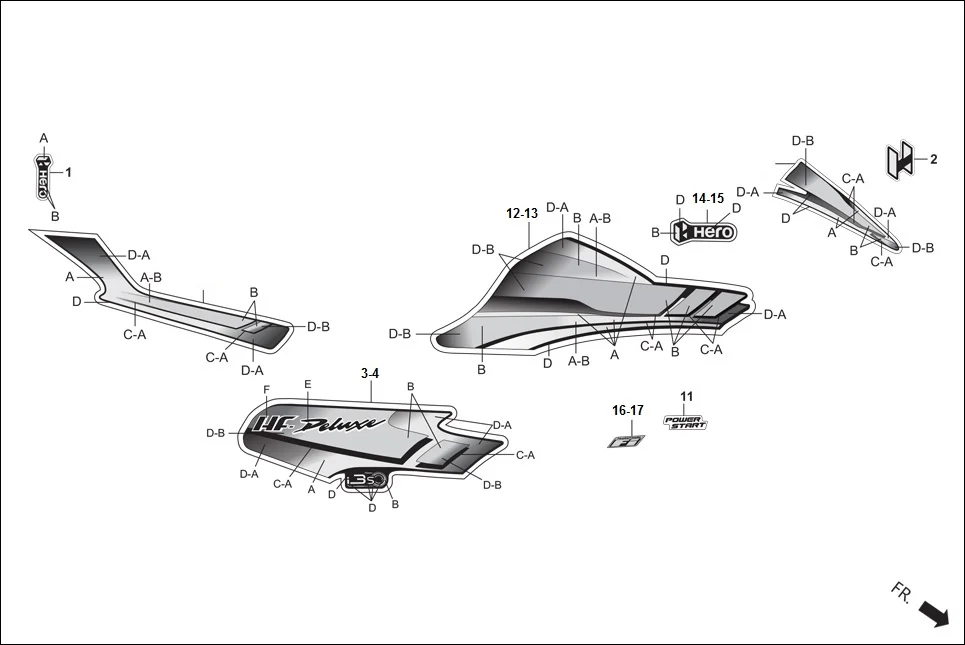

F-27-KICK - STRIPES/MARK
Hero HF-Deluxe(March,2023) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77238-ACK-000R | MARK CENTER RR COWL (TYPE-1) | 1 | |
| 1 | 77238-ACK-000X | MARK CENTER RR COWL (TYPE-4) | 1 | |
| 2 | 86830-AAF-400 | EMBLEM WINDSCREEN | 1 | |
| 2 | 86830-ACK-000X | EMBLEM, ‘H’ MARK | 1 | |
| 3 | 86115-ACK-000R | STRIPE R. SIDE COVER (TYPE-1) (W/O I3S) | 1 | |
| 3 | 86115-ACK-000T | STRIPE R. SIDE COVER (TYPE-3) (W/O I3S) | 1 | |
| 3 | 86115-ACK-000X | STRIPE R. SIDE COVER (TYPE-6) (W/O i3S) | 1 | |
| 3 | 86115-ACK-000Y | STRIPE R. SIDE COVER (TYPE-6) (W/O i3S) | 1 | |
| 4 | 86116-ACK-000R | STRIPE L. SIDE COVER (TYPE-1) (W/O I3S) | 1 | |
| 4 | 86116-ACK-000T | STRIPE L. SIDE COVER (TYPE-3) (W/O I3S) | 1 | |
| 4 | 86116-ACK-000X | STRIPE L. SIDE COVER (TYPE-6) (W/O i3S) | 1 | |
| 4 | 86116-ACK-000Y | STRIPE L. SIDE COVER (TYPE-6) (W/O i3S) | 1 | |
| 12 | 86516-ACK-000R | STRIPE A, R. FUEL TANK (TYPE-1) | 1 | |
| 12 | 86516-ACK-000T | STRIPE A, R. FUEL TANK (TYPE-3) | 1 | |
| 12 | 86516-ACK-000X | STRIPE A, R. FUEL TANK (TYPE-6) | 1 | |
| 12 | 86516-ACK-000Y | STRIPE A, R. FUEL TANK (TYPE-6) | 1 | |
| 13 | 86517-ACK-000R | STRIPE A, L. FUEL TANK (TYPE-1) | 1 | |
| 13 | 86517-ACK-000T | STRIPE A, L. FUEL TANK (TYPE-3) | 1 | |
| 13 | 86517-ACK-000X | STRIPE A, L. FUEL TANK (TYPE-6) | 1 | |
| 13 | 86517-ACK-000Y | STRIPE A, L. FUEL TANK (TYPE-6) | 1 | |
| 14 | 86518-ACK-000R | STRIPE B, R. FUEL TANK (TYPE-1) | 1 | |
| 14 | 86518-ACK-000X | STRIPE B, R. FUEL TANK (TYPE-4) | 1 | |
| 15 | 86519-ACK-000R | STRIPE B, L. FUEL TANK (TYPE-1) | 1 | |
| 15 | 86519-ACK-000X | STRIPE B, L. FUEL TANK (TYPE-4) | 1 | |
| 16 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 17 | 85404-AAC-800 | PROGRAMMED FI MARK LEFT | 1 | |
