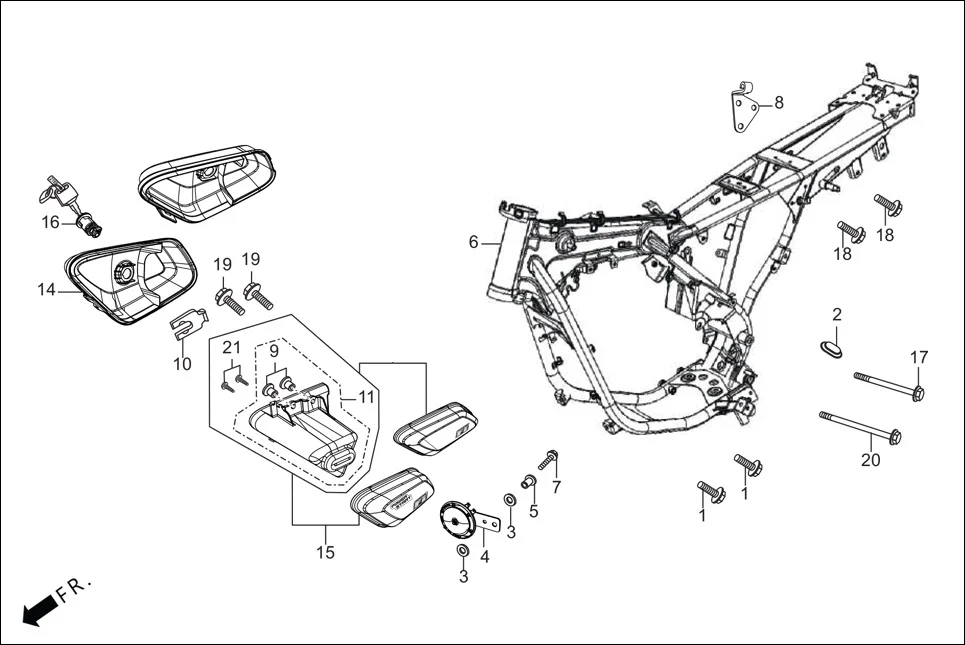

F-25-SELF - FRAME BODY/UTILITY BOX
Hero HF-Deluxe(March,2023) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 2 | |
| 2 | 32712-ZA0-000 | GROMMET, TERM/C | 1 | |
| 3 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 4 | 38110-AAN-00099 | HORN COMP | 1 | |
| 4 | 38110-AAE-001 | HORN COMP., | 1 | |
| 5 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 6 | 50100-ACK-900 | FRAME BODY COMP., | 1 | |
| 7 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 1 | |
| 8 | 50211-KCC-900 | PLATE, ENGINE HANGER | 1 | |
| 9 | 61107-AAF-400 | COLLAR 6MM | 2 | |
| 10 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 11 | 83510-ACK-000 | UTILITY BOX COMP., | 1 | |
| 14 | 83540-ACK-010 | SET, UTILITY BOX R. COVER (SELF I3S) | 1 | |
| 15 | 83550-ACK-010 | SET, UTILITY BOX L. COVER (SELF I3S) | 1 | |
| 16 | 83550-ACK-00099 | LOCK, SIDE COVER | 1 | |
| 17 | 90116-KCC-900 | BOLT FLANGE, 8 X 97 | 1 | |
| 18 | 90121-AAD-500 | BOLT FLANGE 8 X 16 | 2 | |
| 19 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 2 | |
| 20 | 90117-KCC-900 | BOLT, FLANGE, 8 X 110 | 1 | |
| 21 | 93913-24310 | SCREW TAPPING 4X14 | 2 | |
