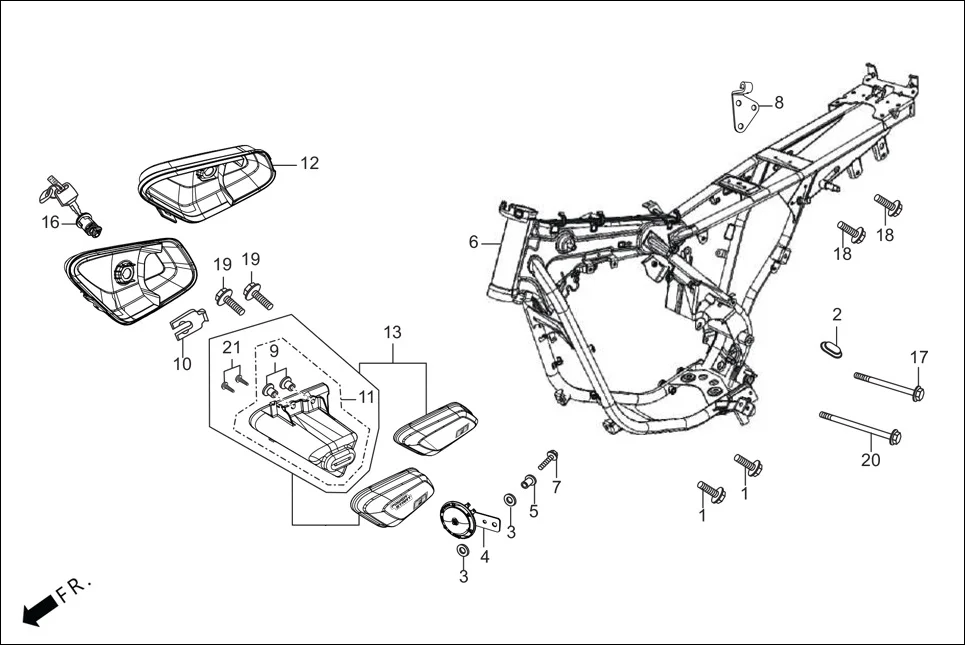

F-25-KICK - FRAME BODY/UTILITY BOX
Hero HF-Deluxe(March,2023) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 32712-ZA0-000 | GROMMET, TERM/C | 1 | |
| 3 | 33714-KL3-620 | RUBBER, TAIL LIGHT | 2 | |
| 4 | 38110-AAN-00099 | HORN COMP | 1 | |
| 4 | 38110-AAE-001 | HORN COMP., | 1 | |
| 5 | 38117-KFE-701 | COLLAR, HORN SET | 1 | |
| 6 | 50100-ACK-900 | FRAME BODY COMP., | 1 | |
| 8 | 50211-KCC-900 | PLATE, ENGINE HANGER | 1 | |
| 9 | 61107-AAF-400 | COLLAR 6MM | 2 | |
| 10 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 11 | 83510-ACK-000 | UTILITY BOX COMP., | 1 | |
| 12 | 83540-ACK-000 | SET, UTILITY BOX R. COVER (KICK) | 1 | |
| 13 | 83550-ACK-000 | SET, UTILITY BOX L. COVER (KICK) | 1 | |
| 16 | 83550-ACK-00099 | LOCK, SIDE COVER | 1 | |
| 17 | 90116-KCC-900 | BOLT FLANGE, 8 X 97 | 1 | |
| 18 | 90121-AAD-500 | BOLT FLANGE 8 X 16 | 2 | |
| 20 | 90117-KCC-900 | BOLT, FLANGE, 8 X 110 | 1 | |
