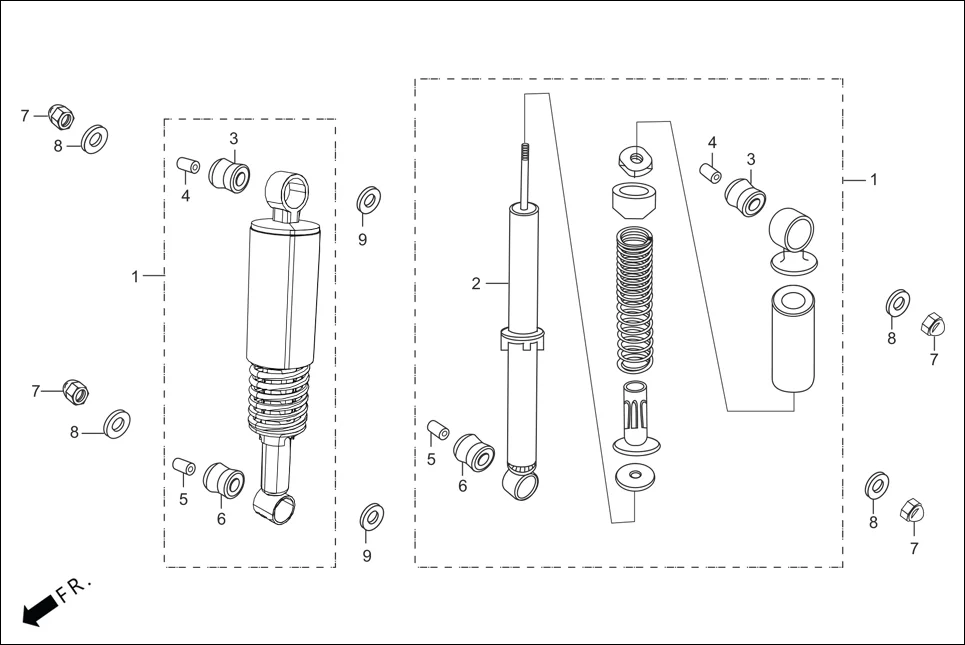

F-20-KICK-REAR CUSHION
HeroHF-Deluxe(March,2023) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-AAH-0099R | CUSHION ASSY RR (BLACK NH-1) | 2 | |
| 1 | 52400-AAH-000U | CUSHION ASSY. RR (CBR, R-195C) | 2 | |
| 1 | 52400-AAH-001U | CUSHION ASSY., REAR (CANDY BLAZING RED) | 2 | |
| 2 | 52410-AAH-000 | DAMPER COMP. RR. | 2 | |
| 3 | 52489-399-600 | BUSH ,RUBBER (UPPER) | 2 | |
| 4 | 52486-056-000 | COLLAR, RUBBER BUSH (UPPER) | 2 | |
| 5 | 52486-KAG-900 | COLLAR ,RUBBER BUSH (UNDER) | 2 | |
| 6 | 52495-098-000 | BUSH, RUBBER (UNDER) | 2 | |
| 7 | 94021-10000-0S | NUT, HEX., CAP, 10MM | 4 | |
| 8 | 90551-178-000 | WASHER,SPL., 10MM | 4 | |
| 9 | 94101-12000 | WASHER, PLAIN, 12MM | 2 |
