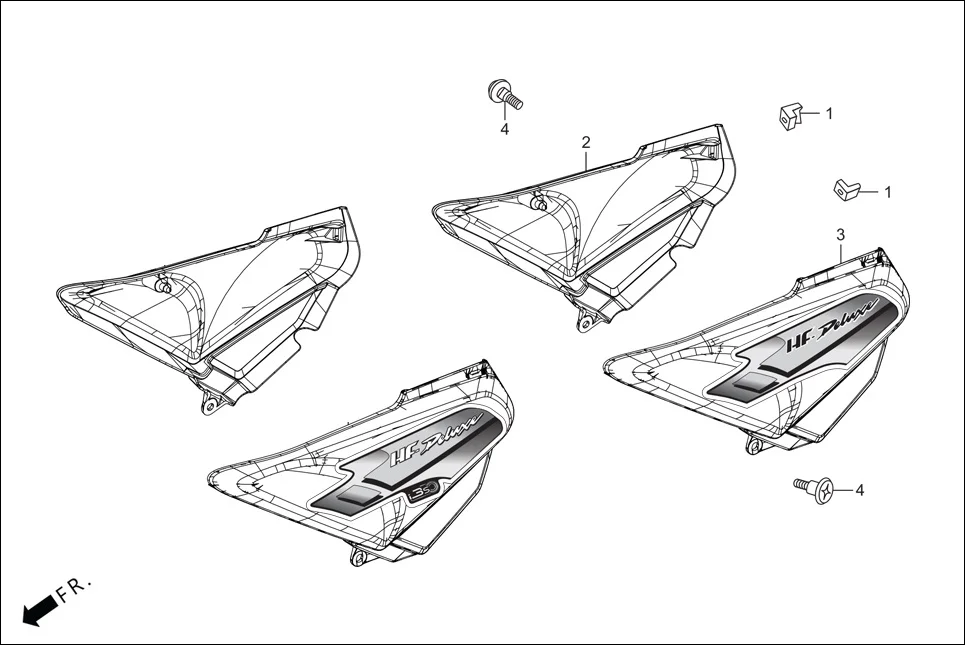

F-14-SELF - SIDE COVER
Hero HF-Deluxe(March,2023) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 83502-KCC-900 | GROMMET, SIDE COVER | 2 | |
| 2 | 83500-ACK-000R | SET, R. SIDE COVER (BLACK-1) (W/O I3S) | 1 | |
| 2 | 83500-ACK-000T | SET, R. SIDE COVER (BLACK-3) (W/O I3S) | 1 | |
| 2 | 83500-ACK-000U | SET, R. SIDE COVER (TECHNO BLUE ME.) (W/O I3S) | 1 | |
| 2 | 83500-ACK-000W | SET, R. SIDE COVER (HEAVY GRAY ME.) (W/O I3S) | 1 | |
| 2 | 83500-ACK-000X | SET, R. SIDE COVER (CANDY BLAZING RED) (W/O i3S) | 1 | |
| 2 | 83500-ACK-000Y | SET, R. SIDE COVER (BLACK-4) (W/O i3S) | 1 | |
| 3 | 83600-ACK-000R | SET, L. SIDE COVER (BLACK-1) (W/O I3S) | 1 | |
| 3 | 83600-ACK-000T | SET, L. SIDE COVER (BLACK-3) (W/O I3S) | 1 | |
| 3 | 83600-ACK-000U | SET, L. SIDE COVER (TECHNO BLUE ME.) (W/O I3S) | 1 | |
| 3 | 83600-ACK-000W | SET, L. SIDE COVER (HEAVY GRAY ME.) (W/O I3S) | 1 | |
| 3 | 83600-ACK-000X | SET, L. SIDE COVER (CANDY BLAZING RED) (W/O i3S) | 1 | |
| 3 | 83600-ACK-000Y | SET, L. SIDE COVER (BLACK-4) (W/O i3S) | 1 | |
| 4 | 90113-KST-940 | BOLT SIDE COVER | 2 | |
