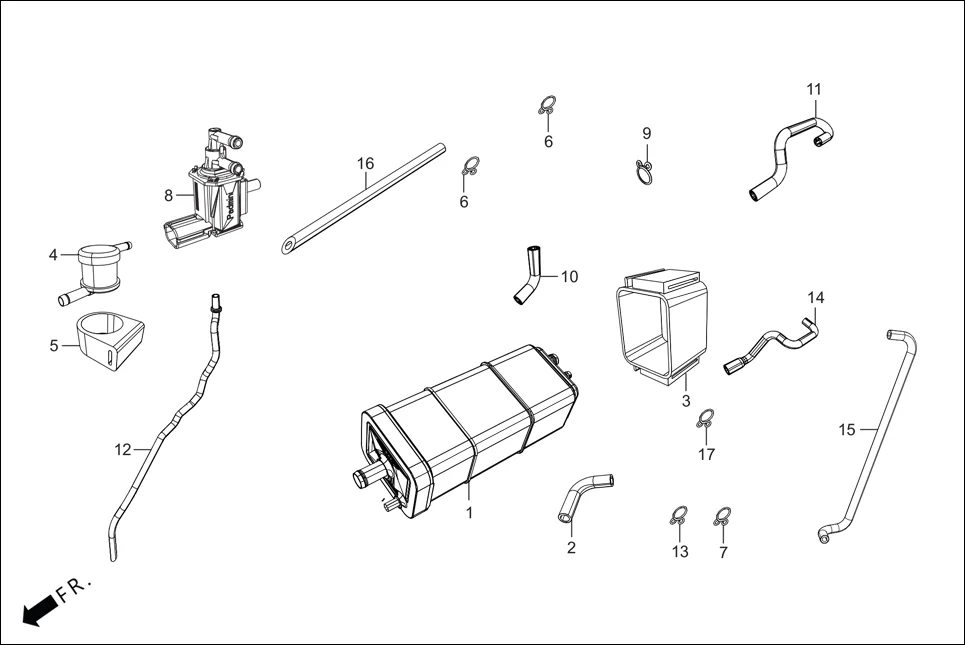

F-13A - FUEL TANK(CANISTER ASSY.)
Hero HF-Deluxe(March,2023) · 16 parts
Parts in This Assembly (16)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAH-A0099 | CANISTER COMP | 1 | |
| 2 | 17695-AAD-A00 | TUBE AIR CANISTER | 1 | |
| 3 | 17411-AAH-A00 | SUSP. CANISTER | 1 | |
| 4 | 17420-AAE-10099 | ROLL OVER VALVE | 1 | |
| 5 | 17421-AAE-100 | SUSP. ROLL OVER VALVE | 1 | |
| 6 | 95002-70000 | CLIP, C11 TUBE | 2 | |
| 7 | 95002-02100 | CLIP, B-10 TUBE | 1 | |
| 8 | 17554-AAE-B0099 | PURGE SOLENOID VALVE | 1 | |
| 9 | 95002-02130 | CLIP B 12.5 TUBE | 1 | |
| 10 | 17690-ACK-B00 | TUBE PIPE BREATHER | 1 | |
| 11 | 17691-ACK-000 | TUBE A CANISTER | 1 | |
| 12 | 17199-ACK-000 | TUBE DRAIN B SUB ASSY | 1 | |
| 13 | 95002-02080 | CLIP, TUBE | 8 | |
| 14 | 17670-ACK-000 | PURGE TUBE A | 1 | |
| 15 | 17671-ACK-900 | PURGE TUBE B | 1 | |
| 16 | 17696-ACK-000 | TUBE DRAIN CANISTER | 1 | |
