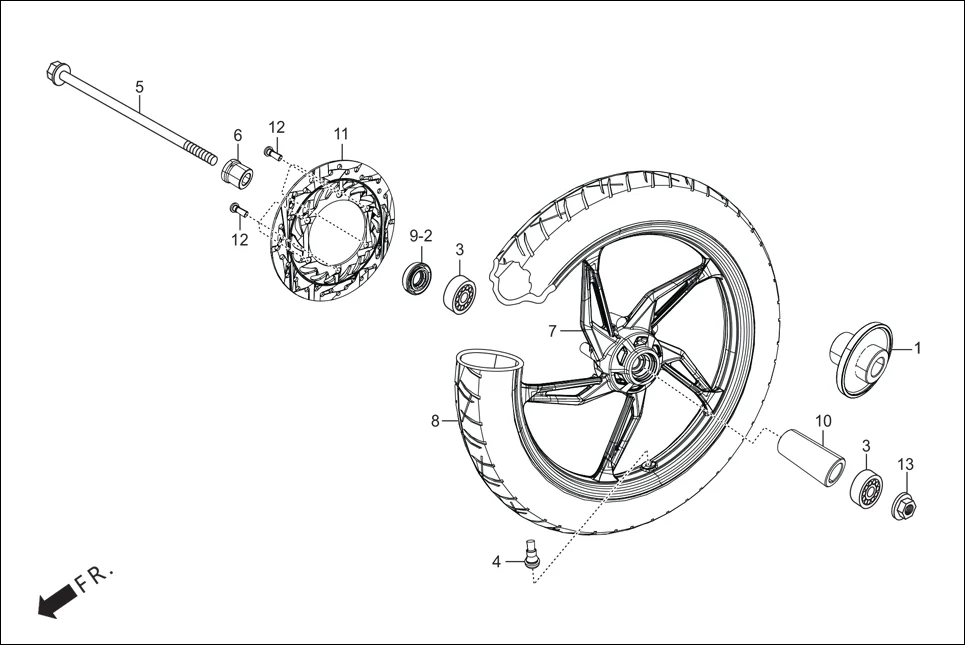

F-9A-DISC - FRONT WHEEL (DISC)
Hero Glamour FI-iBS BSVI (Jan, 2021) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 44802-AAB-A00 | SLEEVE FR WHEEL (LH) | 1 | |
| 2 | 90755-229-000 | OIL SEAL, 21 X 37 X 7 | 1 | |
| 3 | 96150-63010-10 | BEARING, BALL RADIAL, 6301 (UU) | 2 | |
| 4 | 42753-KWF-90099 | RIM VALVE | 1 | |
| 5 | 44301-KTR-700 | AXLE, FR. WHEEL | 1 | |
| 6 | 44311-KRC-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 7 | 44601-AAN-B1099 | WHEEL COMP FRONT | 1 | |
| 8 | 44711-AAN-B03 | TYRE FRONT | 1 | |
| 9 | 91251-KPH-901 | DUST SEAL, 21 X 37 X 7 | 1 | |
| 10 | 44620-400-000 | COLLAR, FRONT DISTANCE | 1 | |
| 11 | 45251-KSP-861 | DISC, FR. BRAKE | 1 | |
| 12 | 90105-MK5-010 | BOLT, FR., DISC, 8 X 22 | 6 | |
| 13 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 13 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
