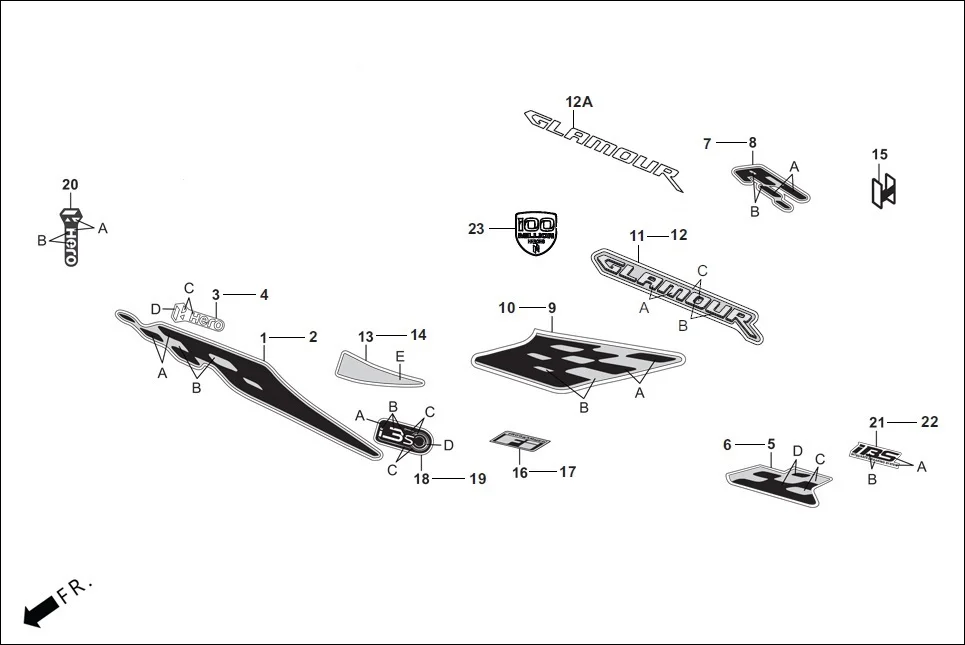

F-27 - STRIPES/MARKS
Hero Glamour FI-iBS BSVI (Jan, 2021) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86771-ACL-A10R | STRIPE A R SIDE COWL (TYPE-1) | 1 | |
| 2 | 86772-ACL-A10R | STRIPE A L SIDE COWL (TYPE-1) | 1 | |
| 3 | 86773-AAN-B00S | STRIPE B R SIDE COWL (TYPE-2) | 1 | |
| 4 | 86774-AAN-B00S | STRIPE B L SIDE COWL (TYPE-2) | 1 | |
| 5 | 86776-ACL-A10R | STRIPE R FR FENDER (TYPE-1) | 1 | |
| 6 | 86876-ACL-A10R | STRIPE L FR FENDER (TYPE-1) | 1 | |
| 7 | 86673-ACL-A10R | STRIPE COVER R FR COWL (TYPE-1) | 1 | |
| 8 | 86674-ACL-A10R | STRIPE COVER R FR COWL (TYPE-1) | 1 | |
| 9 | 86171-ACL-A10R | STRIPE R FUEL TANK (TYPE-1) | 1 | |
| 10 | 86172-ACL-A10R | STRIPE L FUEL TANK (TYPE-1) | 1 | |
| 11 | 50201-AAN-B00 | FT COWL EMBLEM | 1 | |
| 13 | 86831-ACL-A10R | STRIPE R SIDE COVER (TYPE-1) | 1 | |
| 14 | 86832-ACL-A10R | STRIPE L SIDE COVER (TYPE-1) | 1 | |
| 15 | 86840-AAN-B00 | EMBLEM BEZEL,FR COWL | 1 | |
| 16 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 17 | 85404-AAC-800 | PROGRAMMED FI MARK LEFT | 1 | |
| 18 | 86833-ACL-A10R | MARK I3S R SIDE COVER (TYPE-1) | 1 | |
| 19 | 86834-ACL-A10R | MARK I3S L SIDE COVER (TYPE-1) | 1 | |
| 20 | 86785-AAN-B00R | MARK HERO TAIL LIGHT COVER (TYPE-1) | 1 | |
| 21 | 86780-ACL-A10R | MARK IBS FR FENDER RH (TYPE-1) | 1 | |
| 22 | 86880-ACL-A10R | MARK IBS FR FENDER LH (TYPE-1) | 1 | |
| 23 | 86835-AAC-C00 | EMBLEM, FUEL TANK | 1 | |
