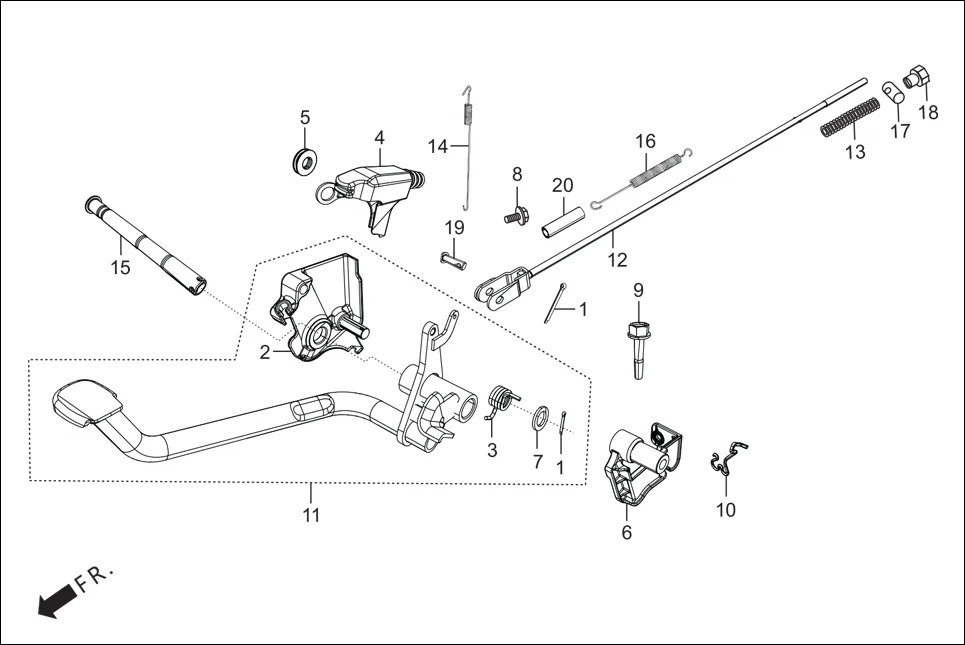

F-18B-DRUM - PEDAL BRAKE/CBS ASSY.(DRUM)
Hero Glamour FI-iBS BSVI (Jan, 2021) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 46513-AAH-F00 | CASING CBS | 1 | |
| 3 | 46515-AAH-F00 | SPRING LEVER DELAY | 1 | |
| 4 | 46519-AAF-400 | CBS DUST BOOT | 1 | |
| 5 | 46519-AAH-F000-20 | CBS DUST BOOT COLLAR | 1 | |
| 6 | 46522-AAF-400 | CBS COVER ASSY | 1 | |
| 7 | 90545-AAH-F00 | WASHER CASING PIVOT | 1 | |
| 8 | 95701-06008-00 | BOLT, FLANGE, 6X8 | 1 | |
| 9 | 95801-08095-00 | BOLT, FLANGE, 8 X 95 | 1 | |
| 10 | 50168-AAF-400 | CBS CABLE GUIDE CLIP | 1 | |
| 11 | 46544-AAG-A10 | RR BRAKE PEDAL & ROD SUB ASSY | 1 | |
| 12 | 43451-AAF-400 | ROD COMP., RR BRAKE | 1 | |
| 13 | 46518-AAF-400 | SPRING, BRAKE PEDAL | 1 | |
| 14 | 35357-AAG-A10 | SPRING, STOP SWITCH | 1 | |
| 15 | 50512-AAF-400 | PIPE, RR. BRAKE PIVOT | 1 | |
| 16 | 43456-KSP-900 | SPRING BRAKE ROD | 1 | |
| 17 | 43455-KSP-900 | JOINT BRAKE ARM | 1 | |
| 18 | 43459-KSP-900 | NUT RR. BRK. ADJUST | 1 | |
| 19 | 95015-AAF-400 | PIN C JOINT | 1 | |
