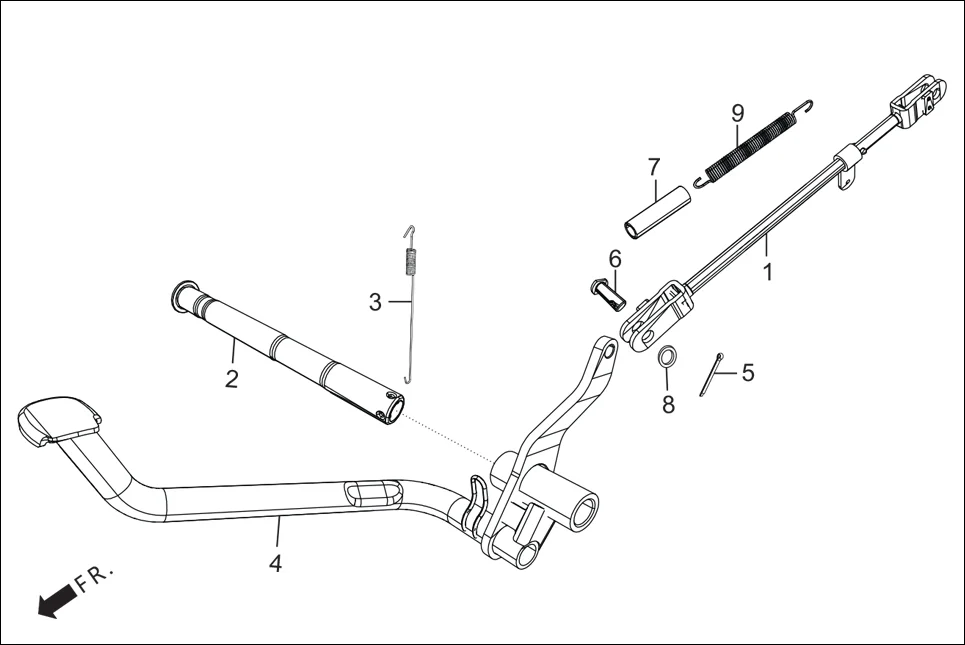

F-18A-DISC - PEDAL BRAKE (DISC)
Hero Glamour FI-iBS BSVI (Jan, 2021) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 43441-AAN-B10 | ROD RR BRAKE | 1 | |
| 2 | 50512-AAF-410 | PIPE RR BRAKE PIVOT | 1 | |
| 3 | 35357-AAN-B10 | SPRING STOP SWITCH | 1 | |
| 4 | 46500-AAN-B10 | PEDAL BRAKE | 1 | |
| 5 | 94201-20150 | PIN, SPLIT, 2.0 X 15 | 1 | |
| 6 | 95015-AAN-G00 | PIN A, LINK | 1 | |
| 7 | 46515-KB9-000 | TUBE , BRAKE PEDAL SPRING | 1 | |
| 8 | 90502-KRY-930 | WASHER , BRAKE ROD | 1 | |
| 9 | 46514-KCC-900 | SPRING , BRAKE PEDAL | 1 | |
