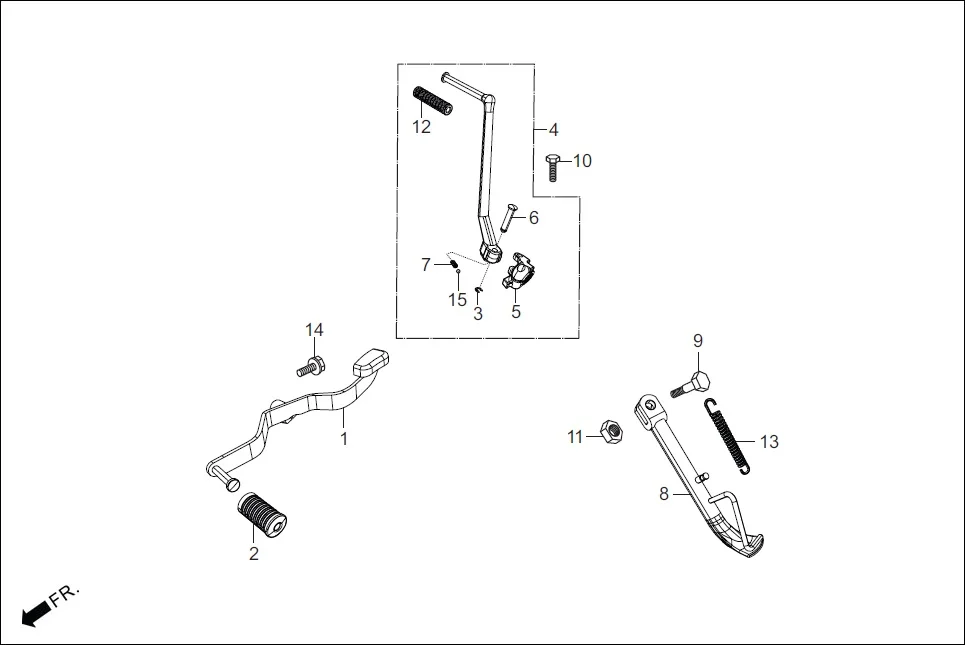

F-17A - KICK STARTER/GEAR CHANGE PEDAL/SIDE STAND/
Hero Glamour FI-iBS BSVI (Jan, 2021) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-AAN-B00 | PEDAL GEAR CHANGE | 1 | |
| 2 | 24781-KR3-770 | RUBBER, CHANGE PEDAL | 1 | |
| 3 | 28293-KAG-900 | CLIP, KICK STARTER | 1 | |
| 4 | 28300-AAC-800 | ARM ASSY. COMP. KICK STATER | 1 | |
| 5 | 28302-AAC-800 | JOINT, KICK ARM | 1 | |
| 6 | 28321-KTC-900 | PIN, KICK STARTER | 1 | |
| 7 | 28333-124-000 | SPRING, KICK STARTER STOPPER | 1 | |
| 8 | 50530-AAF-400 | BAR COMP., SIDE STAND | 1 | |
| 9 | 90107-AAD-000 | SCREW, SIDE STAND PIVOT | 1 | |
| 10 | 92101-08032-0A | BOLT HEX., 8 X 32 | 1 | |
| 11 | 94030-10000 | NUT HEX., 10MM | 1 | |
| 12 | 95011-51000 | RUBBER, A KICK STARTER | 1 | |
| 13 | 95014-72302 | SPRING, C SIDE STAND | 1 | |
| 14 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 1 | |
