OEM Part
OEM Part
16700-AAN-B02
UNIT ASSY FUEL PUMP (JH)
Qty Required: 1
Ref #1 in Assembly
Part of Assembly

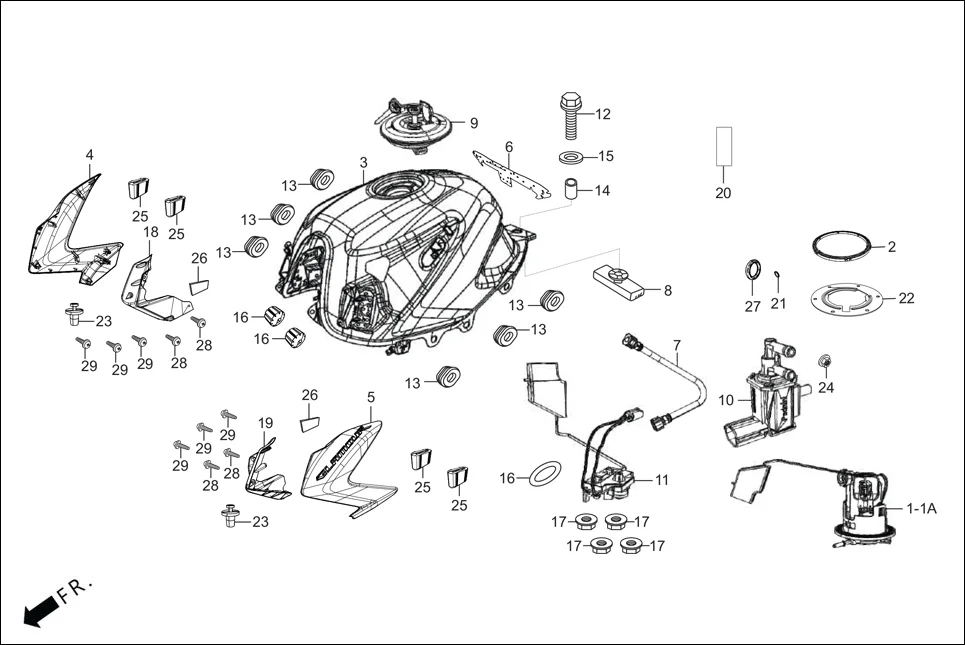

F-13
FUEL TANK
29 parts in this assembly
Assembly Diagram
Ref #1
Supported Vehicles12
H
HERO Glamour Canvas(Oct, 2022)
H
HERO GLAMOUR 125CC FV BSVI(Aug,2023)
H
HERO GLAMOUR MAGNETIC OBD II(Apr., 2025)
H
HERO GLAMOUR REVAMP OBD-II(Sept.,2024)
H
HERO GLAMOUR TECHNO(JAN.2024)
H
HERO Glamour 125 BS-VI Refresh (May,2022)
H
HERO Glamour BSVI Techno OBD II(Jan,2023)
H
HERO Glamour FI-BSVI (Mar, 2020)
Related Parts
16700-AAN-B01
UNIT ASSY FUEL PUMP (ACHR)
17572-AAC-800
GASKET FUEL PUMP
17510-ACL-D00X
TANK COMP. FUEL (CANDY BLAZING RED)
50261-ADJ-800X
SET, R. FT COWL (CANDY BLAZING RED)
50271-ADJ-800X
SET, L. FT COWL (CANDY BLAZING RED)
17521-AAN-B00
TANK FILM PROTECTOR
