HERO OEM Part

90306-KVT-941

NUT BATTERY TERMINAL

Qty Required: 2 Ref #1 in Assembly

Part of Assembly

F-24
WIRE HARNESS/BATTERY
31 parts in this assembly

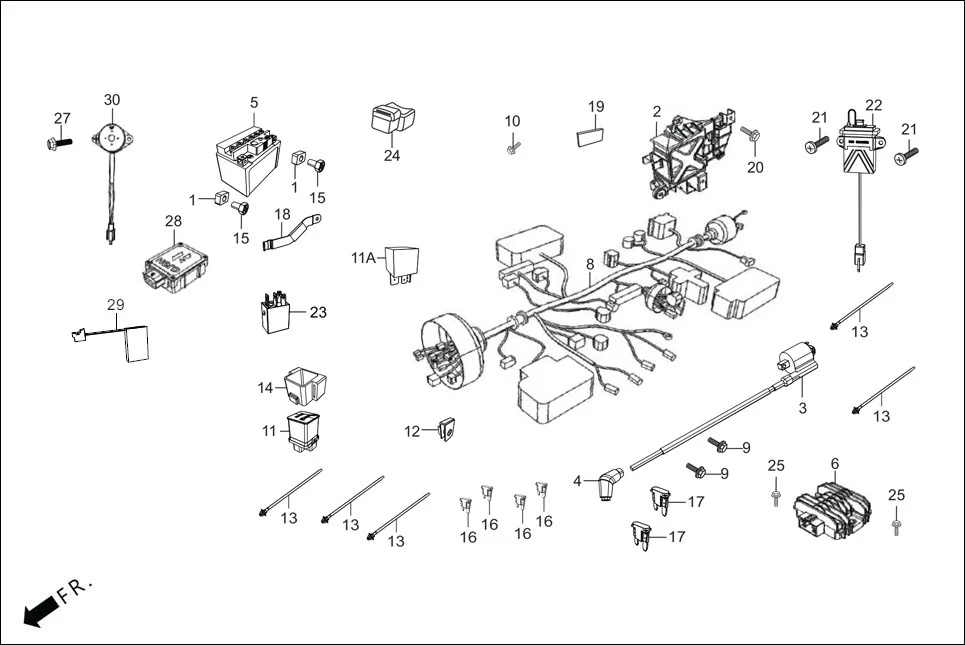

Assembly Diagram

F-24 WIRE HARNESS/BATTERY diagram showing 90306-KVT-941
Ref #1

Supported Vehicles206

HHERO GLAMOUR TECHNO(JAN.2024)
HERO GLAMOUR TECHNO(JAN.2024)
Current
HHERO DESTINI 110 BS6 OBD2 PHB(Sept.,2025)
HERO DESTINI 110 BS6 OBD2 PHB(Sept.,2025)
HHERO DESTINI 125 BS6 OBD2 PHB CBS (Sept.,2025)
HERO DESTINI 125 BS6 OBD2 PHB CBS (Sept.,2025)
HHERO DESTINI 125 BS6 OBD2(Apr., 2025)
HERO DESTINI 125 BS6 OBD2(Apr., 2025)
HHERO DESTINI 125(Dec.,2024)
HERO DESTINI 125(Dec.,2024)
HHERO DESTINI BS6(March,2023)
HERO DESTINI BS6(March,2023)
HHERO DESTINI PRIME OBD PHA B(May, 2025)
HERO DESTINI PRIME OBD PHA B(May, 2025)
HHERO Destini 125 (Mar,2022)
HERO Destini 125 (Mar,2022)

Related Parts

1723A-AAN-B00
BOX BATTERY ASSY
30510-AAF-401
COIL COMP IGNITION.
30510-AAC-801
COIL COMP IGNITION
30700-ACK-00099
CAP ASSY NOISE SUPPRESSOR
31500-KRP-801
BATTERY ASSY
31600-AAC-B02
REG RECT COMP
View all 31 parts in this assembly
