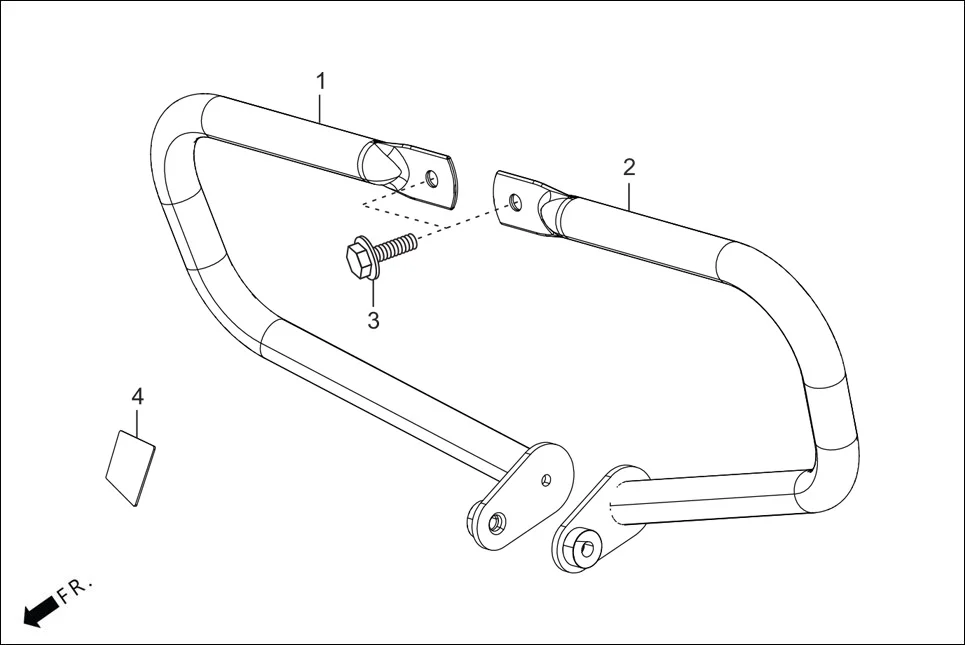

F-28 - GUARD ENGINE(OPTIONAL)
Hero GLAMOUR TECHNO(JAN.2024) · 3 parts
Parts in This Assembly (3)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | NOT SERVICEABLE | GUARD ENGINE | 1 | |
| 3 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 2 | |
| 4 | 52133-AAH-F00 | FILM, PROTECTOR | 1 | |
Hero GLAMOUR TECHNO(JAN.2024) · 3 parts
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | NOT SERVICEABLE | GUARD ENGINE | 1 | |
| 3 | 95701-08016-00 | BOLT, FLANGE, 8X16 | 2 | |
| 4 | 52133-AAH-F00 | FILM, PROTECTOR | 1 | |
