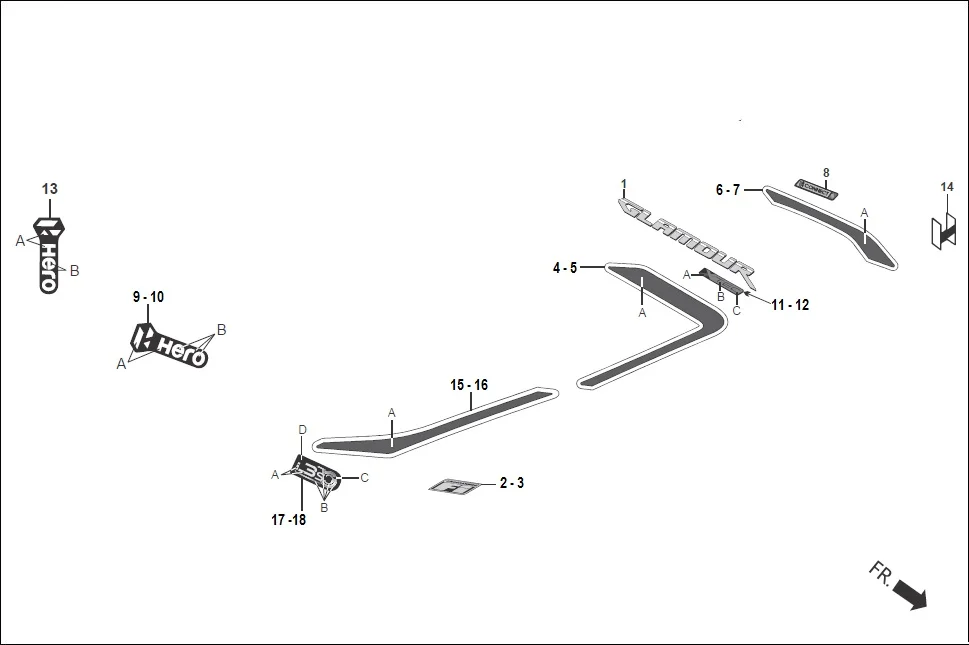

F-27 - STRIPES/MARKS
Hero GLAMOUR TECHNO(JAN.2024) · 18 parts
Parts in This Assembly (18)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50201-ACL-D00V | FT. COWL EMBLEM (TYPE-2) | 2 | |
| 2 | 85401-AAW-A00 | PROGRAMMED FI MARK | 1 | |
| 3 | 85404-AAC-800 | PROGRAMMED FI MARK LEFT | 1 | |
| 4 | 86171-ACL-G00Z | STRIPE R. FUEL TANK (TYPE-1) | 1 | |
| 5 | 86172-ACL-G00Z | STRIPE L. FUEL TANK (TYPE-1) | 1 | |
| 6 | 86673-ACL-G00Z | STRIPE COVER R FR COWL (TYPE-1) | 1 | |
| 7 | 86674-ACL-G00Z | STRIPE COVER L FR COWL (TYPE-1) | 1 | |
| 8 | 86280-ACV-210 | CONNECT LOGO | 1 | |
| 9 | 86773-ACL-G00Z | MARK H HERO COWL R SIDE (TYPE-1) | 1 | |
| 10 | 86774-ACL-G00Z | MARK H HERO COWL L SIDE (TYPE-1) | 1 | |
| 11 | 86753-ACL-G00Z | XTEC MARK R FR COWL (TYPE-1) | 1 | |
| 12 | 86754-ACL-G00Z | XTEC MARK L FR COWL (TYPE-1) | 1 | |
| 13 | 86785-AAN-B00R | MARK HERO TAIL LIGHT COVER (TYPE-1) | 1 | |
| 14 | 86830-ABW-800 | EMBLEM WINDSCREEN SUB. ASSY. | 1 | |
| 15 | 86831-ACL-G00Z | STRIPE R SIDE COVER (TYPE-1) | 1 | |
| 16 | 86832-ACL-G00Z | STRIPE L SIDE COVER (TYPE-1) | 1 | |
| 17 | 86833-ACL-G00Z | MARK I3S R SIDE COVER (TYPE-1) | 1 | |
| 18 | 86834-ACL-G00Z | MARK I3S L SIDE COVER (TYPE-1) | 1 | |
