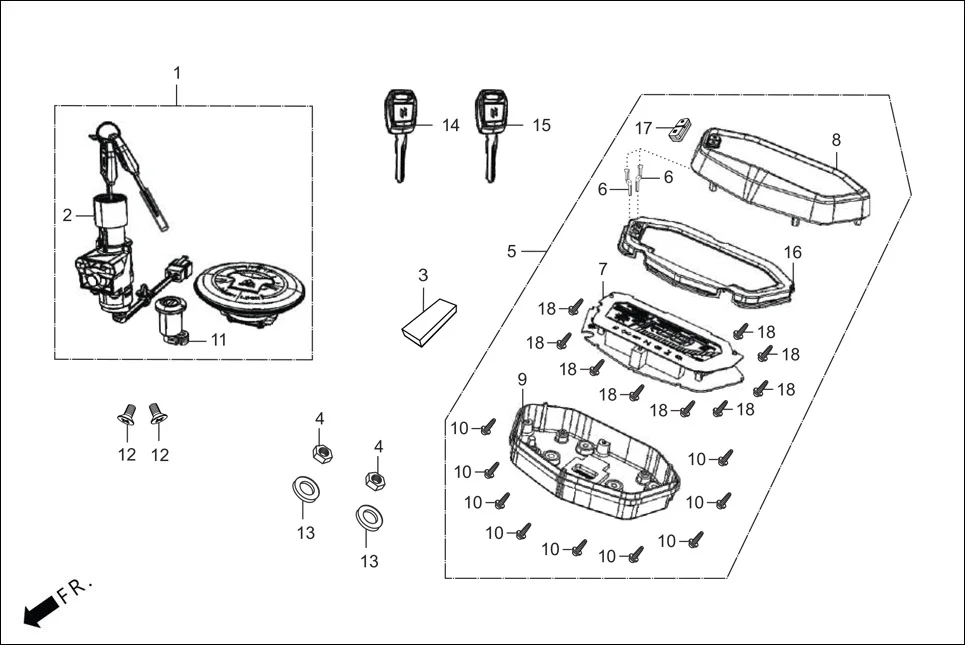

F-2 - SPEEDOMETER/CABLE/KEY SET
Hero GLAMOUR TECHNO(JAN.2024) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35010-ACL-50099 | KEY SET | 1 | |
| 2 | 35100-ACL-D0099 | SWITCH ASSY., COMB & LOCK | 1 | |
| 3 | 37620-ABW-001 | CUSHION SPEEDOMETER | 1 | |
| 4 | 94001-06070-0S | NUT, HEX., 6 MM | 3 | |
| 5 | 37100-ACL-G11 | METER ASSY., COMB. | 1 | |
| 6 | 37202-ACL-D02 | KEY TOP | 2 | |
| 6 | 37202-ABW-001 | KEY TOP | 2 | |
| 8 | 37612-ACL-D12 | UPPER CASE ASSY. | 1 | |
| 8 | 37612-ABW-001 | UPPER CASE ASSY | 1 | |
| 9 | 37610-ACL-D12 | LOWER CASE ASSY | 1 | |
| 9 | 37610-ABW-001 | LOWER CASE ASSY | 1 | |
| 10 | 90101-KY6-000 | SCREW, TAPPING, 3X14 | 9 | |
| 11 | 77239-AAN-B0099 | KEY SEAT LOCK | 1 | |
| 12 | 90164-KPL-900 | SCREW, FLAT, U LOCK, 6X12 | 2 | |
| 13 | 94103-06700 | WASHER, PLAIN, 6 MM | 3 | |
| 14 | 35121-AAG-A0099 | KEY BLANK NO.1 | 1 | |
| 15 | 35122-AAG-A0099 | KEY BLANK NO.2 | 1 | |
| 16 | 37611-ACL-D02 | REFLECTOR ASSY | 1 | |
| 16 | 37611-ABW-201 | REFLECTOR ASSY | 1 | |
| 17 | 37203-ABW-001 | SW RUBBER | 1 | |
| 18 | 93903-22480 | SCREW TAPPING 3 X 16 | 9 | |
