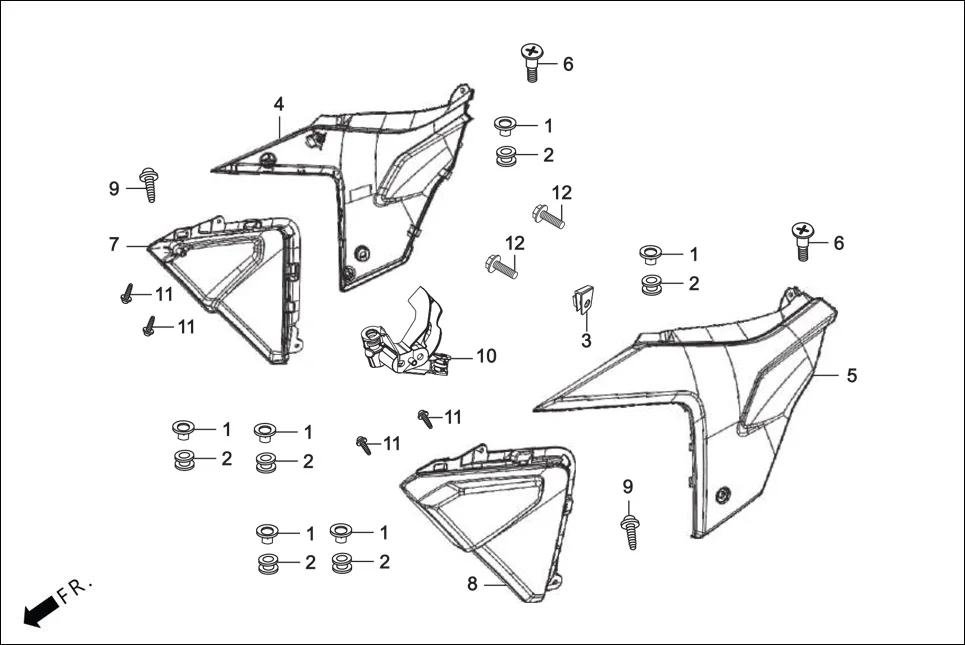

F-14 - SIDE COVER
Hero GLAMOUR TECHNO(JAN.2024) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 3 | 90311-KVH-900 | NUT CLIP 6 MM | 1 | |
| 4 | 83500-ACL-G00Z | SET R SIDE COVER (MAT BLACK NH-105) | 1 | |
| 5 | 83600-ACL-G00Z | SET L SIDE COVER (MAT BLACK NH-105) | 1 | |
| 6 | 90381-AAF-400 | SPECIAL SCREW 6X20 | 2 | |
| 7 | 83550-AAN-B00 | SET COVER FRONT R | 1 | |
| 8 | 83650-AAN-B00 | SET COVER FRONT L | 1 | |
| 10 | 83594-AAN-B00 | SIDE COVER SUPPORT R | 1 | |
