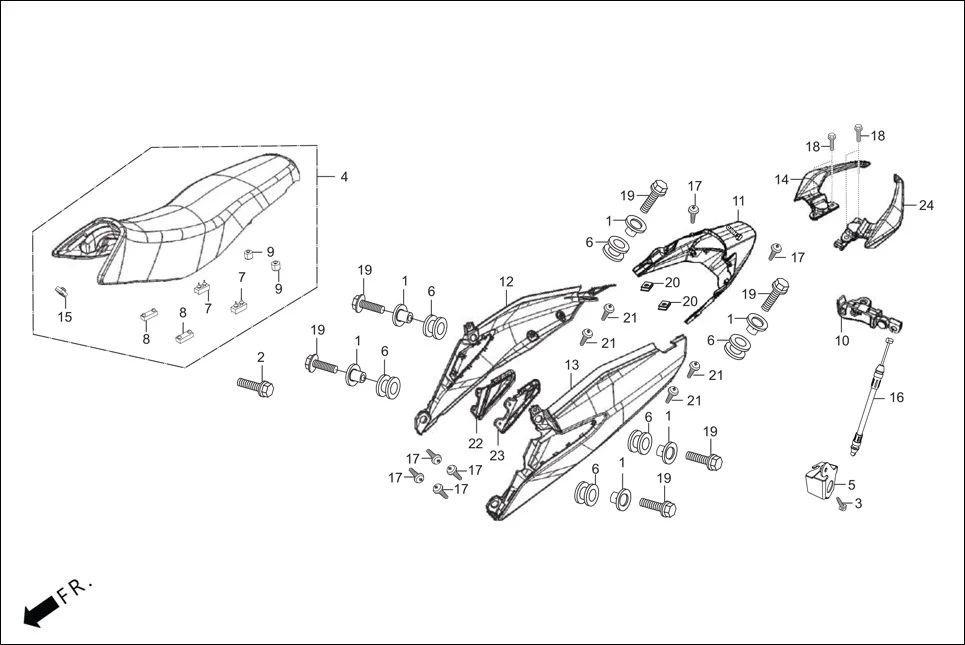

F-12 - SEAT ASSY./REAR COWL/GRIP REAR
Hero GLAMOUR TECHNO(JAN.2024) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17509-398-960 | COLLAR, TANK SET | 6 | |
| 2 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 1 | |
| 3 | 90101-GE0-000 | SCREW, HINGE PATCH | 1 | |
| 4 | 77200-AAN-B00 | SEAT ASSY DOUBLE | 1 | |
| 5 | 77244-AAN-B00 | STAY SEAT LOCK CABLE | 1 | |
| 6 | 77202-KCC-900 | RUBBER, SEAT MOUNTING | 6 | |
| 7 | 77204-AAR-000 | CUSHION RUBBER RIDER SEAT | 2 | |
| 8 | 77205-KTN-700 | RUBBER B, SEAT SETTING | 2 | |
| 9 | 77206-KTR-900 | RUBBER, SEAT CUSHION | 2 | |
| 10 | 77220-KY6-000 | HOOK, SEAT CATCH | 1 | |
| 11 | 88100-AAN-B00R | SET TAIL LIGHT COVER (BLACK (TYPE-1) | 1 | |
| 12 | 77240-ACL-G00Z | SET R SIDE COWL (MAT BLACK NH-105) | 1 | |
| 13 | 77250-ACL-G00Z | SET L SIDE COWL (MAT BLACK NH-105) | 1 | |
| 14 | 50400-ACL-800S | GRIP REAR R(BLACK (BLACK (TYPE-1) NH-1) | 1 | |
| 15 | 50524-001-000 | RUBBER, MAIN STAND STOPPER | 1 | |
| 16 | 77156-AAF-400 | CABLE SEAT LOCK | 1 | |
| 17 | 93903-24310 | SCREW, TAPPING, 4X12 | 6 | |
| 18 | 95701-08025-07 | BOLT FLANGE 8X25 | 4 | |
| 19 | 95701-06025-00 | BOLT, FLANGE, 6X 25 | 6 | |
| 20 | 90320-GC3-000 | NUT, SPRING, M5 | 2 | |
| 21 | 93903-35280 | SCREW, TAPPING, 5 X 12 | 4 | |
| 22 | 77248-AAN-B00C | GRILL R. COWL (MATTE GUNMETAL SILVER) | 1 | |
| 23 | 77258-AAN-B00C | GRILL L. COWL (MATTE GUNMETAL SILVER) | 1 | |
| 24 | 50450-ACL-800S | GRIP REAR L(BLACK (TYPE-1) NH-1) | 1 | |
