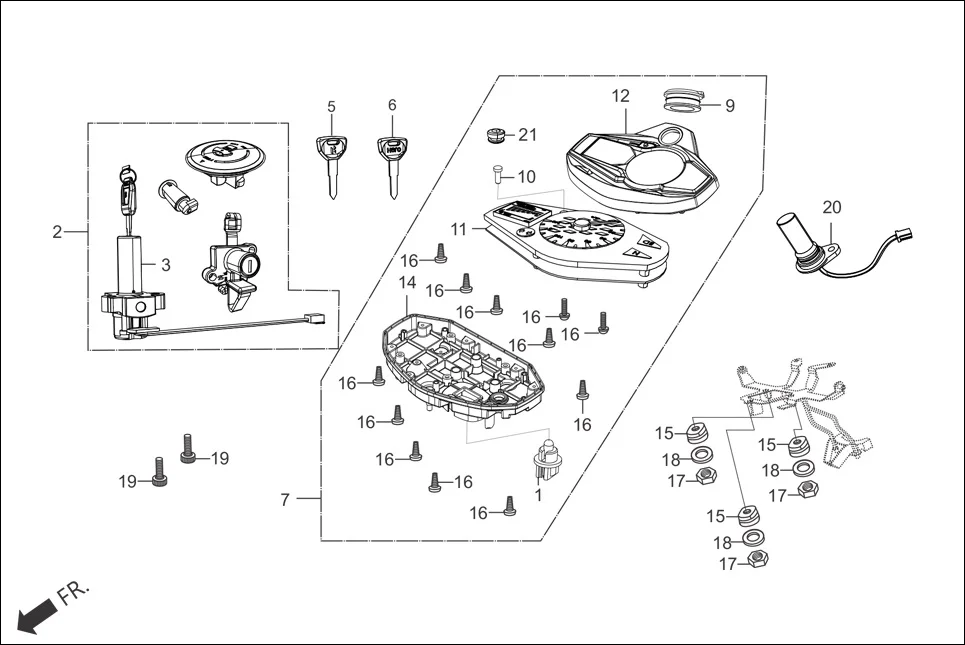

F-2-DRUM - SPEEDOMETER/CABLE/KEY SET
Hero Glamour (Mar, 2017) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33505-KTR-A21 | BULB SOCKET ASSY | 1 | |
| 2 | 35010-AAN-C01 | KEY SET | 1 | |
| 3 | 35100-AAN-601 | SW ASSY COMB & LOCK | 1 | |
| 5 | 35121-AAC-H30 | KEY BLANK NO 1 | 1 | |
| 6 | 35122-AAC-H30 | KEY BLANK NO 2 | 1 | |
| 7 | 37100-AAN-701 | METER ASSY COMB(DRUM) | 1 | |
| 9 | 37105-KRJ-901 | CAP | 1 | |
| 10 | 37202-KTR-A21 | ROD EXTENSION | 1 | |
| 12 | 37211-KTR-A21 | CASE UPPER ASSY | 1 | |
| 14 | 37212-AAN-H21 | CASE UNDER ASSY | 1 | |
| 15 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 16 | 93903-22480 | SCREW TAPPING 3 X 16 | 12 | |
| 17 | 94001-06070-0S | NUT, HEX., 6 MM | 3 | |
| 18 | 94103-06700 | WASHER, PLAIN, 6 MM | 3 | |
| 19 | 96600-08025-00 | SOCKET, BOLT, 8 X 25 | 2 | |
| 20 | 37700-KTR-A21 | SENSOR ASSY., SPEED | 1 | |
| 21 | 37100-AAN-H210-20 | SW. RUBBER | 1 | |
