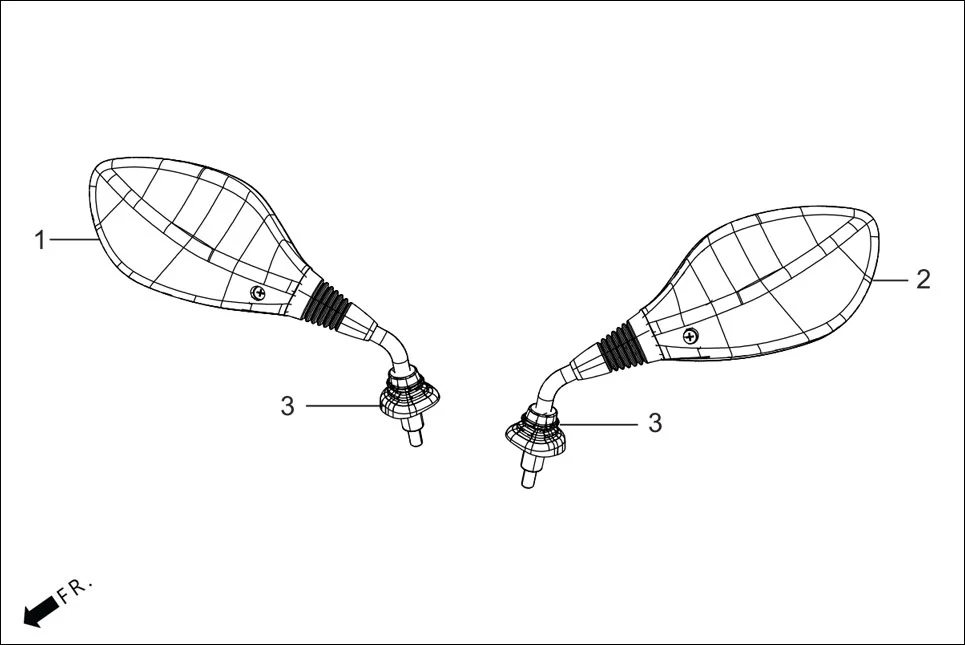

F-3B - MIRROR ASSY.
Hero DESTINI PRIME OBD PHA B(May, 2025) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 88110-ABS-000S | MIRROR ASSY R BACK PSW (WH-004P) | 1 | |
| 1 | 88110-ABS-000T | MIRROR ASSY R BACK NOBLE RED (RD-021M) | 1 | |
| 1 | 88110-ABS-000Y | MIRROR ASSY. R. BACK (MET. NEXUS BLUE BL(BR)-013M(G)) | 1 | |
| 1 | 88110-ABS-000R | MIRROR ASSY R BACK PBM (NH-B08M) | 1 | |
| 2 | 88120-ABS-000S | MIRROR ASSY L BACK PSW (WH-004P) | 1 | |
| 2 | 88120-ABS-000T | MIRROR ASSY L BACK NOBLE RED (RD-021M) | 1 | |
| 2 | 88120-ABS-000Y | MIRROR ASSY. L. BACK (MET. NEXUS BLUE BL(BR)-013M(G)) | 1 | |
| 2 | 88120-ABS-000R | MIRROR ASSY L BACK PBM (NH-B08M) | 1 | |
| 3 | 88115-KTR-900 | BOOT, MIRROR UPPER | 2 | |
