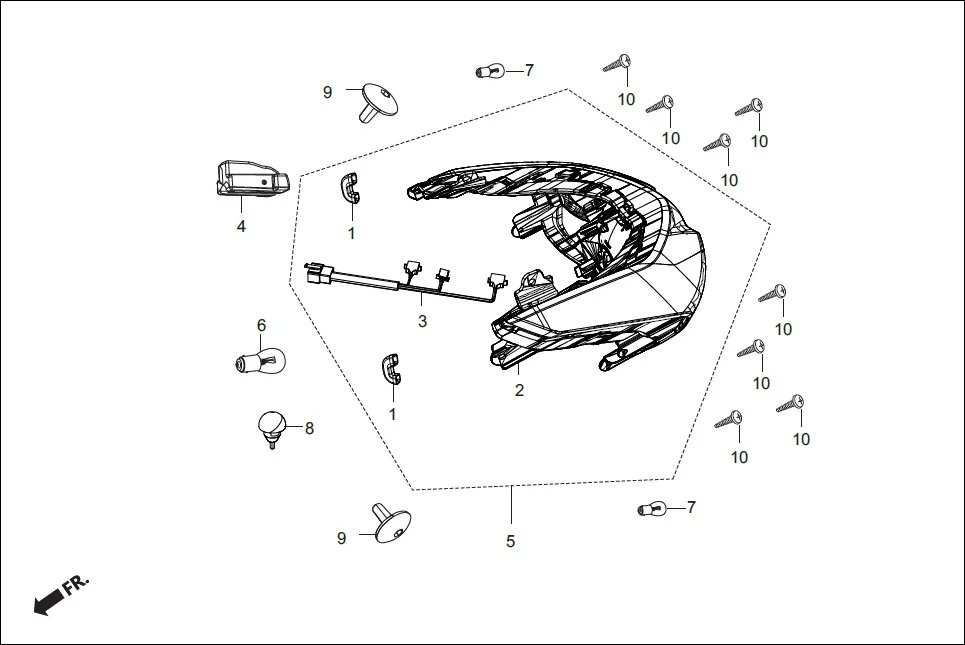

F-20 - TAIL LIGHT
Hero DESTINI PRIME OBD PHA B(May, 2025) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33101-KVN-901 | TUBE | 2 | |
| 2 | 33702-ABS-001 | UNIT TAIL LAMP ASSY | 1 | |
| 3 | 33703-ABS-001 | SOCKET COMP FOR DOMESTIC | 1 | |
| 4 | 33705-AAY-000 | RUBBER,TAIL LIGHT MOUNT | 2 | |
| 5 | 3370B-ABS-001 | LIGHT ASSY REAR COMB. | 1 | |
| 6 | 34907-KVN-901 | BLUB, TAIL & STOP LIGHT | 1 | |
| 7 | 34930-AAC-700 | BULB(12V 10W) AMBER | 2 | |
| 8 | 50501-KTP-900 | STOPPER RUBBER | 1 | |
| 9 | 90114-AAY-000 | BOLT SPECIAL OVAL 6X15 | 2 | |
| 10 | 93903-34480 | SCREW, TAPPING, 4X 16 | 8 | |
