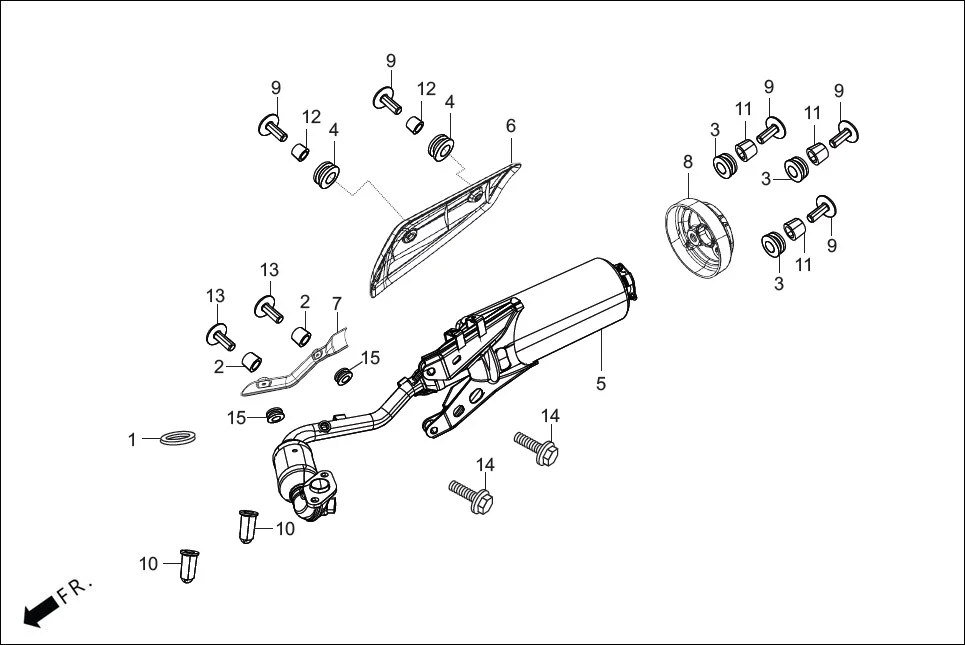

F-16 - MUFFLER
Hero DESTINI PRIME OBD PHA B(May, 2025) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18292-GY1-610 | GASKET, EXH.PIPE | 1 | |
| 2 | 90312-AAL-900 | COLLAR | 2 | |
| 3 | 18293-AAW-000 | RUBBER PKG. PROTECTOR | 3 | |
| 4 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 2 | |
| 5 | B1AHE1J004000 | MUFFLER EXHAUST COMP | 1 | |
| 6 | 18318-ABS-300 | PROTECTOR MUFFLER | 1 | |
| 7 | 18319-ABS-200 | PROTECTOR EXH. PIPE | 1 | |
| 8 | 18340-ABS-000 | COVER TAIL CAP | 1 | |
| 9 | 90102-AAW-000 | BOLT. SPECIAL 6X20 | 5 | |
| 10 | 90308-KPL-840 | NUT, CAP, 6 MM | 2 | |
| 11 | 90312-AAW-000 | COLLAR M6X11 | 3 | |
| 12 | 33619-459-840A | COLLAR,WINKER STAY | 2 | |
| 13 | 90107-AAL-900 | SCREW SPECIAL 6X18 | 2 | |
| 14 | 95801-AAW-000 | BOLT FLANGE 10X45 | 2 | |
| 15 | 18293-AAL-900 | RUBBER PKG PROTECTOR | 2 | |
