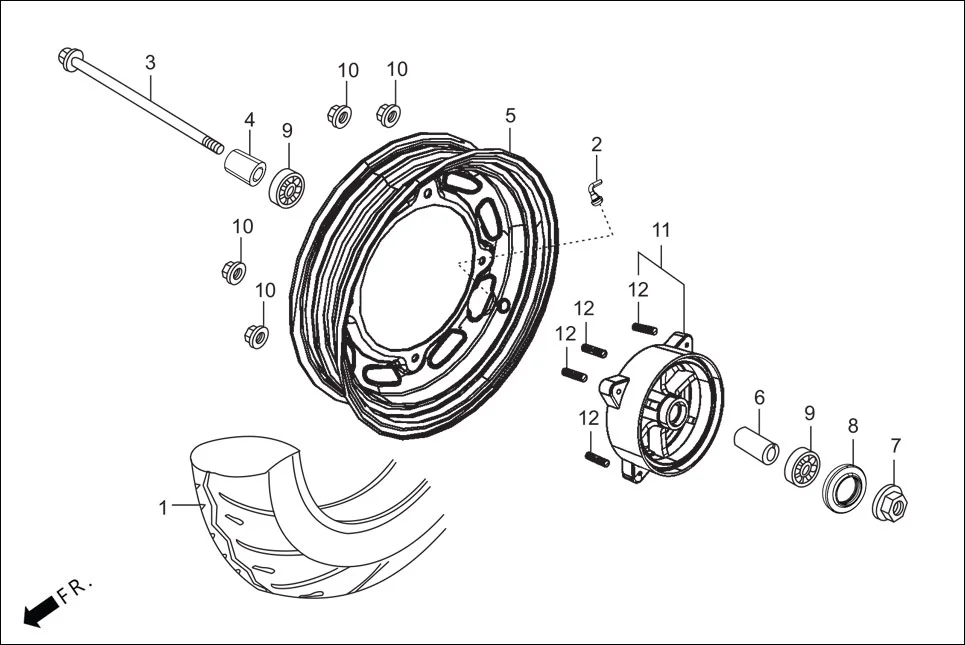

F-10 - FRONT WHEEL
Hero DESTINI PRIME OBD PHA B(May, 2025) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 42711-AAL-00099 | TYRE | 1 | |
| 2 | 42753-AAL-001 | RIM,VALVE | 1 | |
| 3 | 44301-AAW-300 | AXLE FRONT WHEEL | 1 | |
| 4 | 44311-KPL-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 5 | 42702-AAY-000 | RIM COMP WHEEL | 1 | |
| 6 | 44620-KTP-900 | COLLAR, FR. WHEEL DISTANCE | 1 | |
| 7 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 7 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 8 | 90754-KPL-900 | SEAL, DUST 20 X 32 X 5 | 1 | |
| 9 | 90912-KPL-900 | BEARING BALL RADIAL 6201(U) | 2 | |
| 10 | 90309-KF0-000 | NUT, FLANGE, 8 MM | 4 | |
| 11 | 44610-KTP-900 | HUB SUB COMP. FR | 1 | |
| 12 | 90110-KPL-900 | BOLT, STUD, 8X22 | 4 | |
