F-20 - TAIL LIGHT

Hero DESTINI 125 BS6 OBD2 PHB CBS (Sept.,2025) · 7 parts

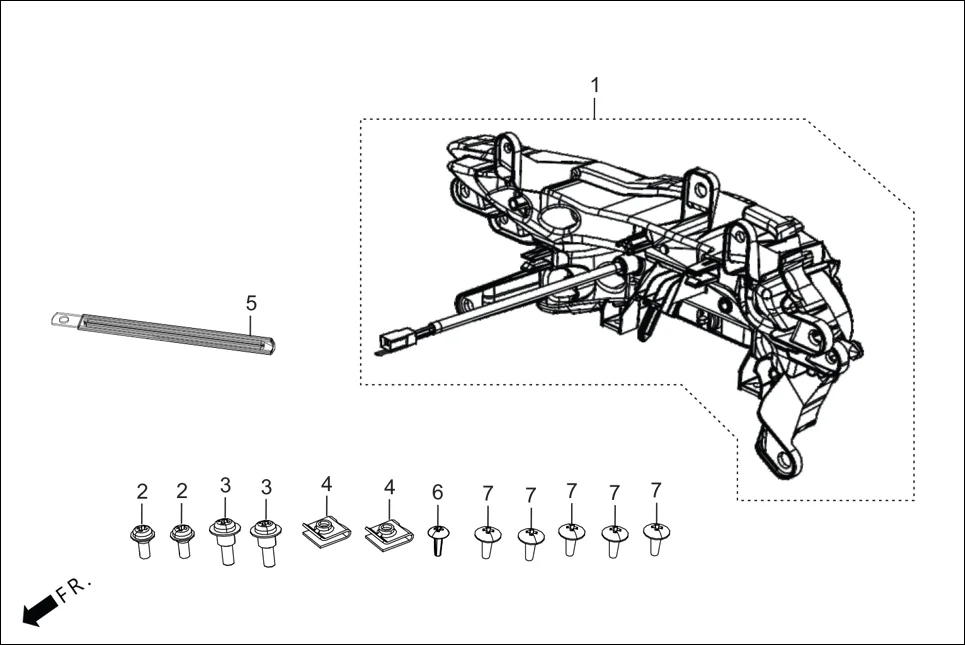

F-20 TAIL LIGHT assembly diagram for Hero DESTINI 125 BS6 OBD2 PHB CBS (Sept.,2025)

Parts in This Assembly (7)

Ref # Part Number Description Qty
1 33700-ABS-401 UNIT TAIL LIGHT 1
2 90101-GE0-000 SCREW, HINGE PATCH 2
3 90102-GB2-720 SCREW, PAN, 5X16 2
4 90320-GC3-000 NUT, SPRING, M5 2
5 91410-ABW-000 CLIP 3X130 1
6 93903-24310 SCREW, TAPPING, 4X12 1
7 93903-25280 SCREW, TAPPING 5X12 5
