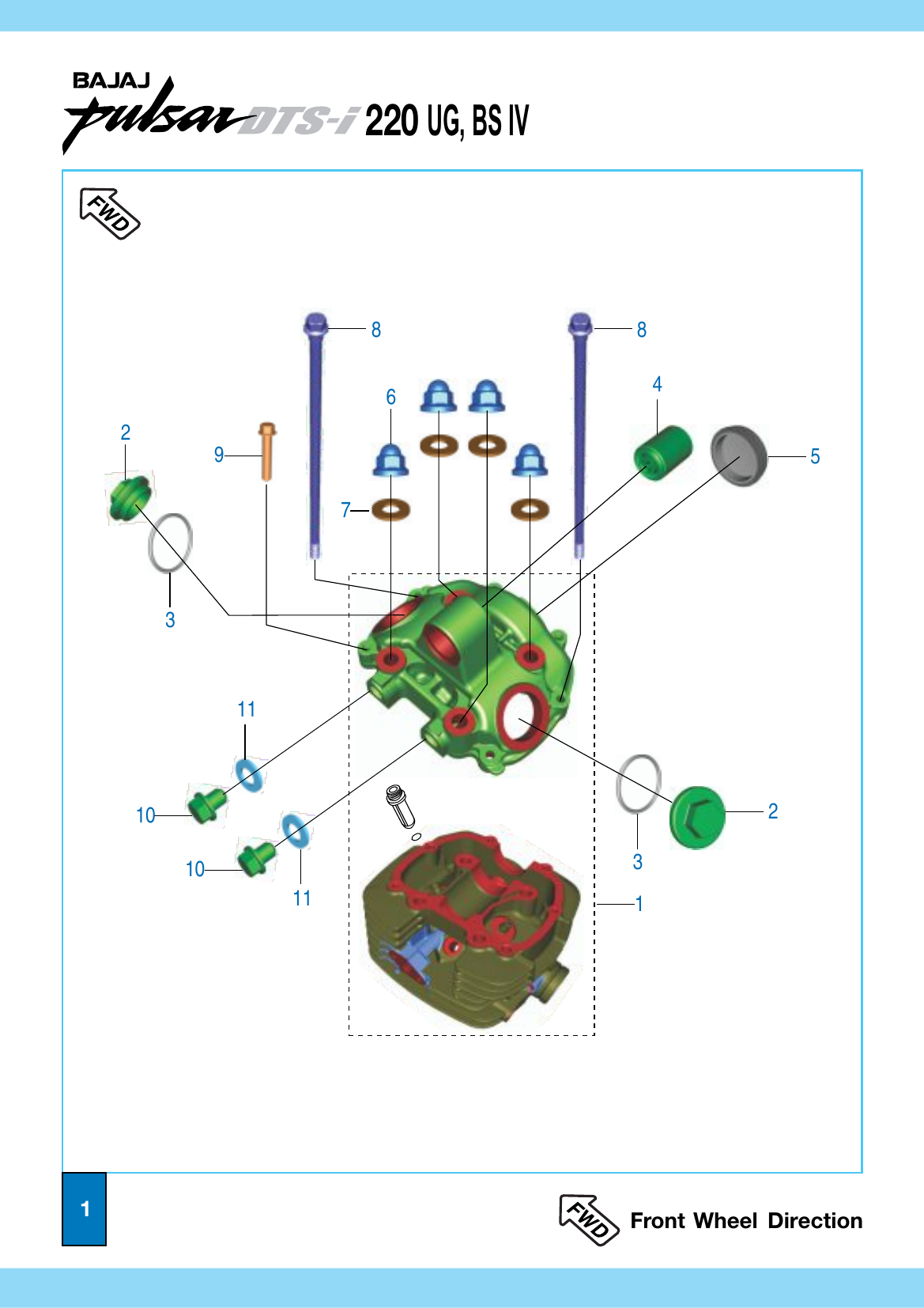

Plate 1
Cover Cylinder Head
36 DK01 19
Kit Assembly Cylinder Head with Cover
Ref 11 Refer Kit Details
DH 1012 72
Plug
Ref 102
DH 1019 16
Bolt flange - M12 x 1.5 x L15
Ref 102 For ABS Model
DG 1014 98
Gasket
Ref 112 2 2
DJ 1012 17
Cover Tappet
Ref 22
39 2391 21
‘O’ Ring
Ref 31
DS 1011 66
Silent Bush (V)
Ref 41
DH 1022 01
Camshaft Cap
Ref 51
39 2647 15
Domed Cap Nut
Ref 64
DS 1010 84
Copper gasket
Ref 74
59 0400 23
Hex. Bolt with Flange
Ref 82
39 1075 04
Hex. Bolt with Flange
Ref 94
KA ED06 35
Bolt flanged small
Ref 94 For ABS Model
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | 36 DK01 19 | Kit Assembly Cylinder Head with Cover | — | 1 Refer Kit Details | |
| 10 | DH 1012 72 | Plug | — | 2 | |
| 10 var. of 10 | DH 1019 16 | Bolt flange - M12 x 1.5 x L15 | — | 2 For ABS Model | |
| 11 | DG 1014 98 | Gasket | — | 2 2 2 | |
| 2 | DJ 1012 17 | Cover Tappet | — | 2 | |
| 3 | 39 2391 21 | ‘O’ Ring | — | 1 | |
| 4 | DS 1011 66 | Silent Bush (V) | — | 1 | |
| 5 | DH 1022 01 | Camshaft Cap | — | 1 | |
| 6 | 39 2647 15 | Domed Cap Nut | — | 4 | |
| 7 | DS 1010 84 | Copper gasket | — | 4 | |
| 8 | 59 0400 23 | Hex. Bolt with Flange | — | 2 | |
| 9 | 39 1075 04 | Hex. Bolt with Flange | — | 4 | |
| 9 var. of 9 | KA ED06 35 | Bolt flanged small | — | 4 For ABS Model |
Showing 13 parts in Plate 1
