BAJAJ
SPC PLATINA 125 REV 00
606 parts across 46 plates
Color (Transition)Doc: 71111029Rev: REV. 00Date: 2010-03-0146 plates · 16 kits · 0 revisions

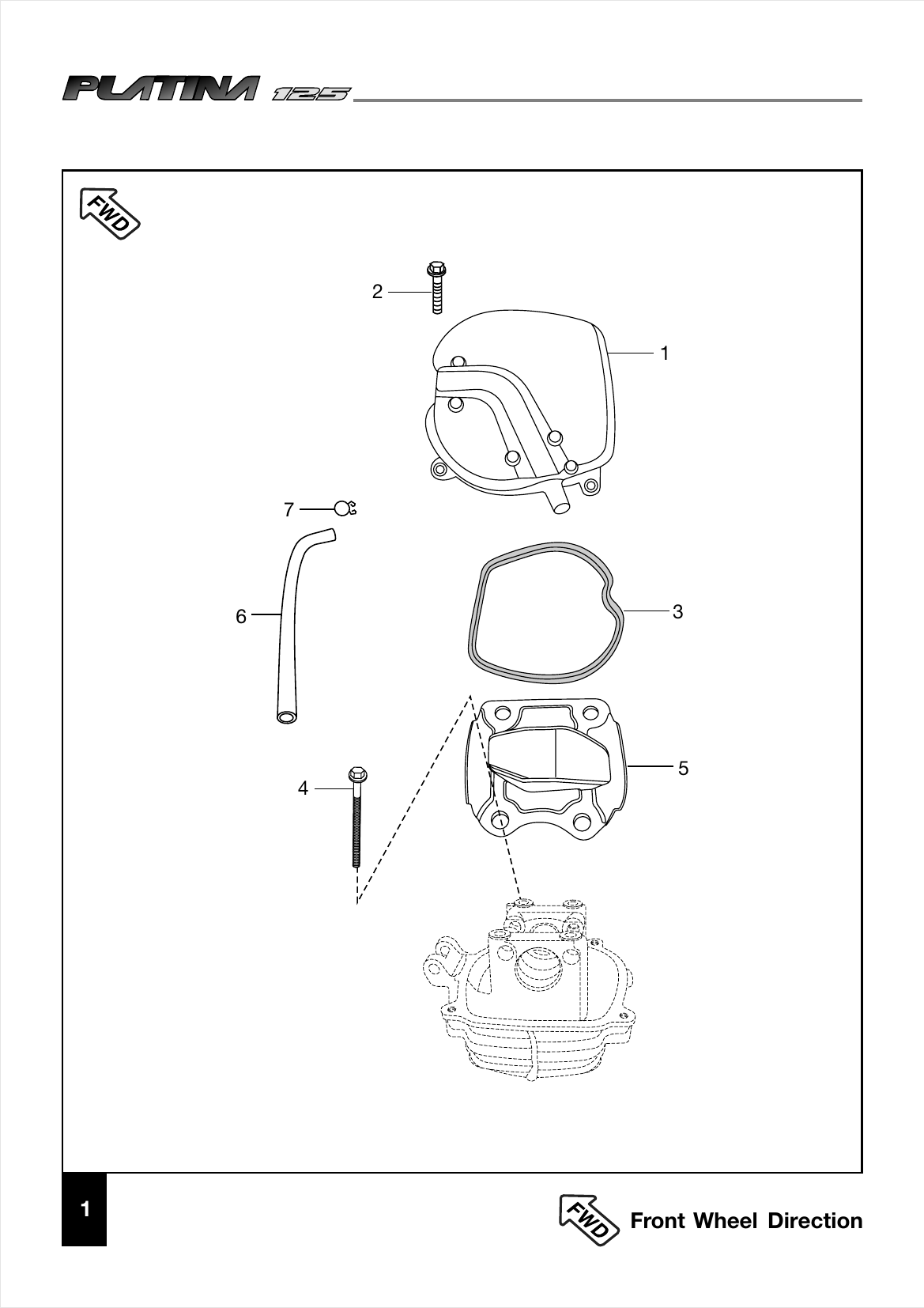

Plate 1
Cover Cylinder Head
JV 5110 13
Cylinder head cover complete
Ref 1Qty.: 11
JV 5410 07
Bolt flange
Ref 2Qty.: 44
JV 5110 12
Gasket head cover
Ref 3Qty.: 11
JB 5110 11
Bolt head Mounting
Ref 4Qty.: 44
JV 5110 11
Plate breather
Ref 5Qty.: 11
JA 5110 11
Hose Breather
Ref 6Qty.: 11
JA 5110 29
Clamp Breather Tube
Ref 7Qty.: 11
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JV 5110 13 | Cylinder head cover complete | 1 | 1 | |
| 2 | JV 5410 07 | Bolt flange | 4 | 4 | |
| 3 | JV 5110 12 | Gasket head cover | 1 | 1 | |
| 4 | JB 5110 11 | Bolt head Mounting | 4 | 4 | |
| 5 | JV 5110 11 | Plate breather | 1 | 1 | |
| 6 | JA 5110 11 | Hose Breather | 1 | 1 | |
| 7 | JA 5110 29 | Clamp Breather Tube | 1 | 1 |
Showing 7 parts in Plate 1
Plate 1
Cover Cylinder Head
JV 5110 13
Cylinder head cover complete
Ref 1Qty.: 11
JV 5410 07
Bolt flange
Ref 2Qty.: 44
JV 5110 12
Gasket head cover
Ref 3Qty.: 11
JB 5110 11
Bolt head Mounting
Ref 4Qty.: 44
JV 5110 11
Plate breather
Ref 5Qty.: 11
JA 5110 11
Hose Breather
Ref 6Qty.: 11
JA 5110 29
Clamp Breather Tube
Ref 7Qty.: 11
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JV 5110 13 | Cylinder head cover complete | 1 | 1 | |
| 2 | JV 5410 07 | Bolt flange | 4 | 4 | |
| 3 | JV 5110 12 | Gasket head cover | 1 | 1 | |
| 4 | JB 5110 11 | Bolt head Mounting | 4 | 4 | |
| 5 | JV 5110 11 | Plate breather | 1 | 1 | |
| 6 | JA 5110 11 | Hose Breather | 1 | 1 | |
| 7 | JA 5110 29 | Clamp Breather Tube | 1 | 1 |
Showing 7 parts in Plate 1
