BAJAJ
SPC PLATINA 100ES KS CBS REV 20
1147 parts across 55 plates
Color (Transition)Doc: 71112147Rev: REV. 20Date: 2020-01-0155 plates · 52 kits · 63 revisions

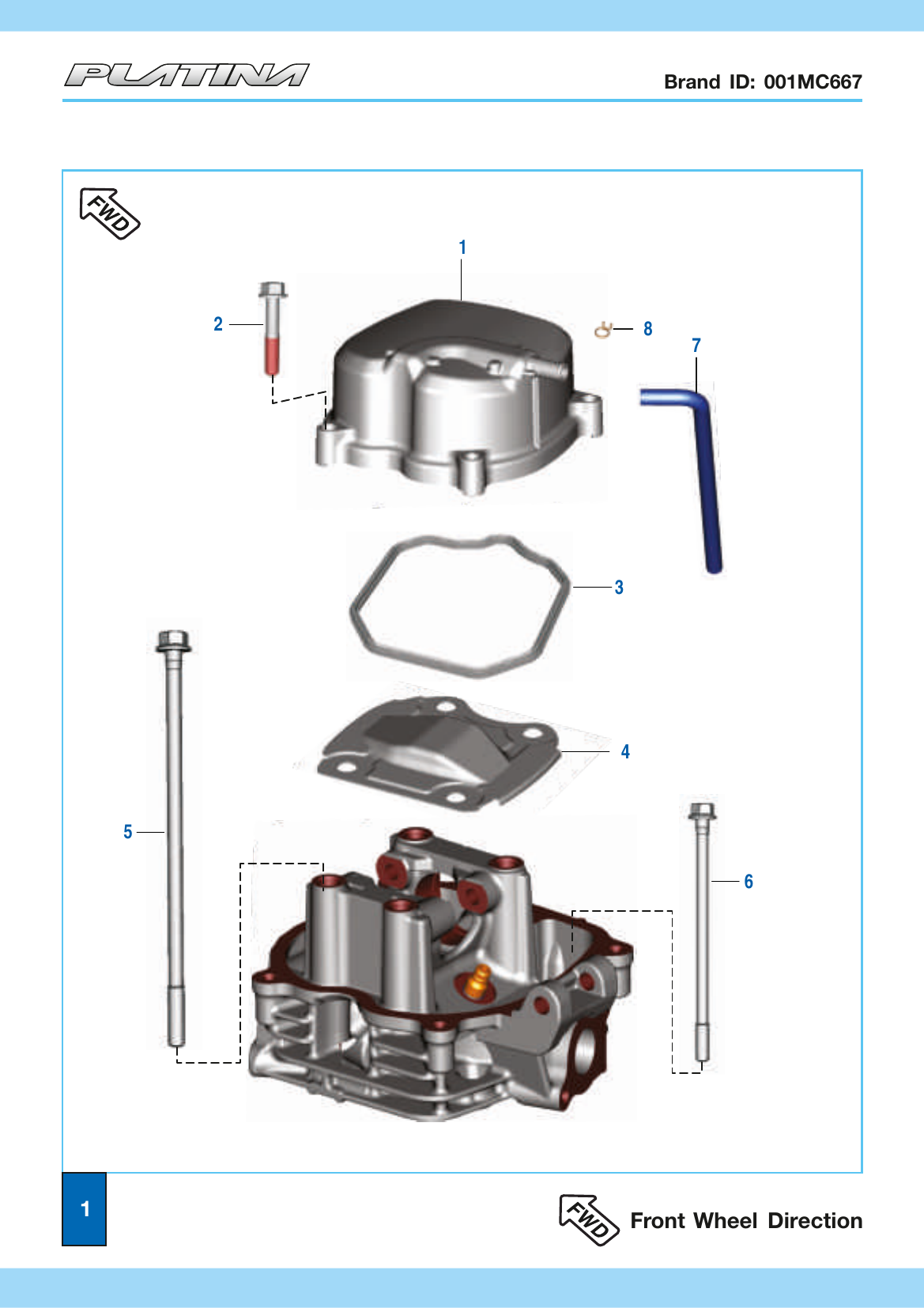

Plate 1
Cover Cylinder Head
JV 5110 13
Cover Cylinder Head Complete
Ref 1(ES): 11 With Gasket
59 0400 38
Flanged Bolt
Ref 2(ES): 44
JV 5110 12
Gasket Cylinder Head Cover
Ref 3(ES): 11
JV 5110 11
Plate Cylinder Head
Ref 4(ES): 11
JB 5110 11
Bolt Head Mounting
Ref 5(ES): 44
JB 5110 15
Bolt Head Mtg
Ref 6(ES): 11
PF 5810 47
Tube Breather
Ref 7(ES): 11
DG 1210 40
Clamp
Ref 8(ES): 22
DP 1210 25
Clamp
Ref 8(ES): 22 For CBS Model
| Ref | Part # | Description | (ES) | (KS) | Remarks | |
|---|---|---|---|---|---|---|
| 1 | JV 5110 13 | Cover Cylinder Head Complete | 1 | — | 1 With Gasket | |
| 2 | 59 0400 38 | Flanged Bolt | 4 | — | 4 | |
| 3 | JV 5110 12 | Gasket Cylinder Head Cover | 1 | — | 1 | |
| 4 | JV 5110 11 | Plate Cylinder Head | 1 | — | 1 | |
| 5 | JB 5110 11 | Bolt Head Mounting | 4 | — | 4 | |
| 6 | JB 5110 15 | Bolt Head Mtg | 1 | — | 1 | |
| 7 | PF 5810 47 | Tube Breather | 1 | — | 1 | |
| 8 | DG 1210 40 | Clamp | 2 | — | 2 | |
| 8 var. of 8 | DP 1210 25 | Clamp | 2 | — | 2 For CBS Model |
Showing 9 parts in Plate 1
