BAJAJ
SPC KRISTAL REV 00
585 parts across 44 plates
Line ArtDoc: 71110427Rev: REV. 00Date: 2007-10-0144 plates · 5 kits · 0 revisions

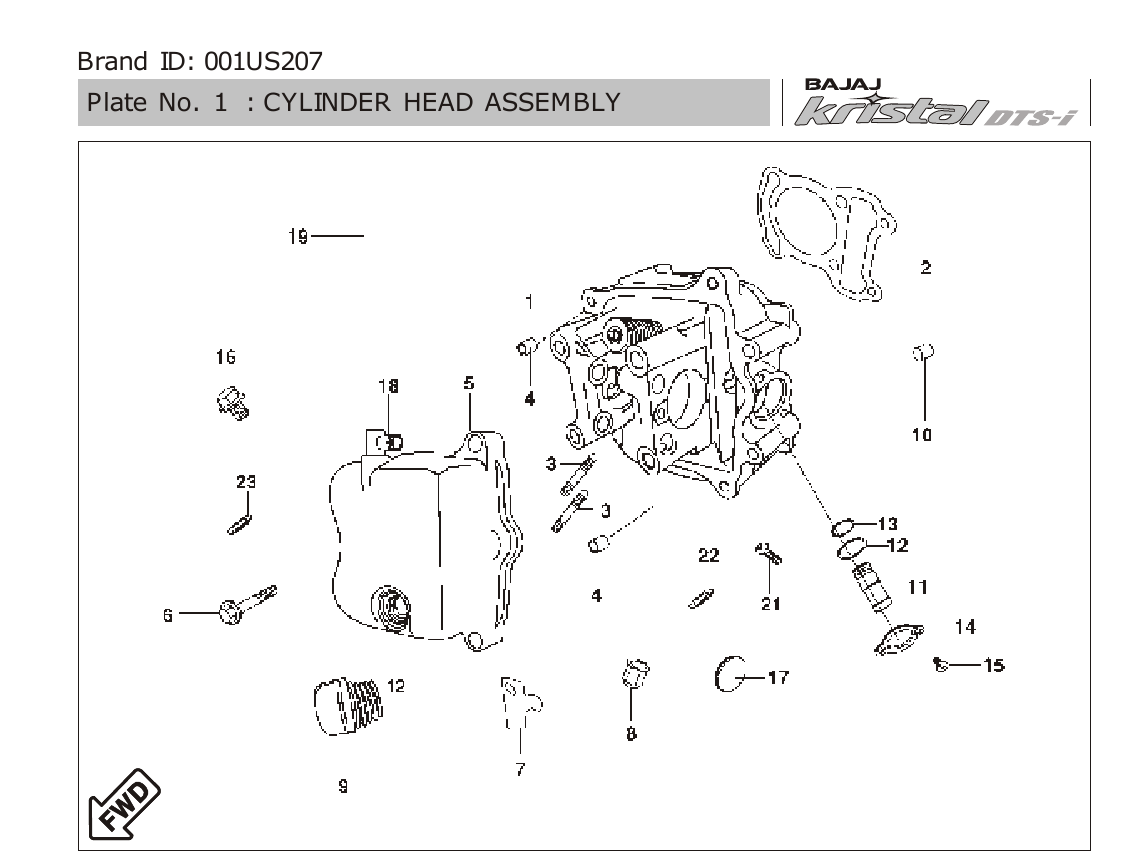

Plate 1
CYLINDER HEAD ASSEMBLY
GF 1011 19
Cylinder Head Assly.
Ref 1Qty/Veh.: 1
39 1000 06
Hollow Dowel Pin
Ref 10Qty/Veh.: 2
CS 1012 96
Sleeve Spark Plug
Ref 11Qty/Veh.: 1
39 1283 21
O Ring, Outer
Ref 12Qty/Veh.: 1Sleeve Spark Plug
39 2629 21
O Ring, Inner
Ref 13Qty/Veh.: 1Sleeve Spark Plug
CS 1013 19
Retainer Sleeve Spark Plug
Ref 14Qty/Veh.: 1
39 2614 01
Screw Counter Sunk
Ref 15Qty/Veh.: 2Sleeve Lock
CS 1013 64
Bolt Stopper
Ref 16Qty/Veh.: 2
CS 1012 95
Cap Camshaft
Ref 17Qty/Veh.: 1
GF 1010 81
Fitting breather head cover
Ref 18Qty/Veh.: 1
GF 1010 75
Seal head cover
Ref 19Qty/Veh.: 1
GF 1010 04
Gasket cylinder Head
Ref 2Qty/Veh.: 1
GF 1010 36
Plate rocker shaft
Ref 20Qty/Veh.: 1N.I.
DX 1010 71
Screw pan cross
Ref 21Qty/Veh.: 1
39 0200 11
Plain washer
Ref 22Qty/Veh.: 4
39 1622 11
Plain washer
Ref 23Qty/Veh.: 2
39 1300 05
Stud
Ref 3Qty/Veh.: 2Exhaust Mtg.
39 0999 06
Hollow Dowel pin
Ref 4Qty/Veh.: 2
GF 1010 80
Cylinder Head cover
Ref 5Qty/Veh.: 1
39 2383 15
Nut head mtg.
Ref 6Qty/Veh.: 4
GF 1010 30
Plate Breather
Ref 7Qty/Veh.: 1
39 1630 15
Hex. Nut / Flange
Ref 8Qty/Veh.: 4Cylinder Head Mtg.
DS 1010 71
Cap oil filter
Ref 9Qty/Veh.: 2
| Ref | Part # | Description | Qty/Veh. | Remarks | |
|---|---|---|---|---|---|
| 1 | GF 1011 19 | Cylinder Head Assly. | 1 | ||
| 10 | 39 1000 06 | Hollow Dowel Pin | 2 | ||
| 11 | CS 1012 96 | Sleeve Spark Plug | 1 | ||
| 12 | 39 1283 21 | O Ring, Outer | 1 | Sleeve Spark Plug | |
| 13 | 39 2629 21 | O Ring, Inner | 1 | Sleeve Spark Plug | |
| 14 | CS 1013 19 | Retainer Sleeve Spark Plug | 1 | ||
| 15 | 39 2614 01 | Screw Counter Sunk | 2 | Sleeve Lock | |
| 16 | CS 1013 64 | Bolt Stopper | 2 | ||
| 17 | CS 1012 95 | Cap Camshaft | 1 | ||
| 18 | GF 1010 81 | Fitting breather head cover | 1 | ||
| 19 | GF 1010 75 | Seal head cover | 1 | ||
| 2 | GF 1010 04 | Gasket cylinder Head | 1 | ||
| 20 | GF 1010 36 | Plate rocker shaft | 1 | N.I. | |
| 21 | DX 1010 71 | Screw pan cross | 1 | ||
| 22 | 39 0200 11 | Plain washer | 4 | ||
| 23 | 39 1622 11 | Plain washer | 2 | ||
| 3 | 39 1300 05 | Stud | 2 | Exhaust Mtg. | |
| 4 | 39 0999 06 | Hollow Dowel pin | 2 | ||
| 5 | GF 1010 80 | Cylinder Head cover | 1 | ||
| 6 | 39 2383 15 | Nut head mtg. | 4 | ||
| 7 | GF 1010 30 | Plate Breather | 1 | ||
| 8 | 39 1630 15 | Hex. Nut / Flange | 4 | Cylinder Head Mtg. | |
| 9 | DS 1010 71 | Cap oil filter | 2 |
