BAJAJ
SPC DISCOVER 135 DRUM DISC REV 00
787 parts across 54 plates
Line ArtDoc: 71110430Rev: REV. 00Date: 2007-12-0154 plates · 15 kits · 0 revisions
Plate 1

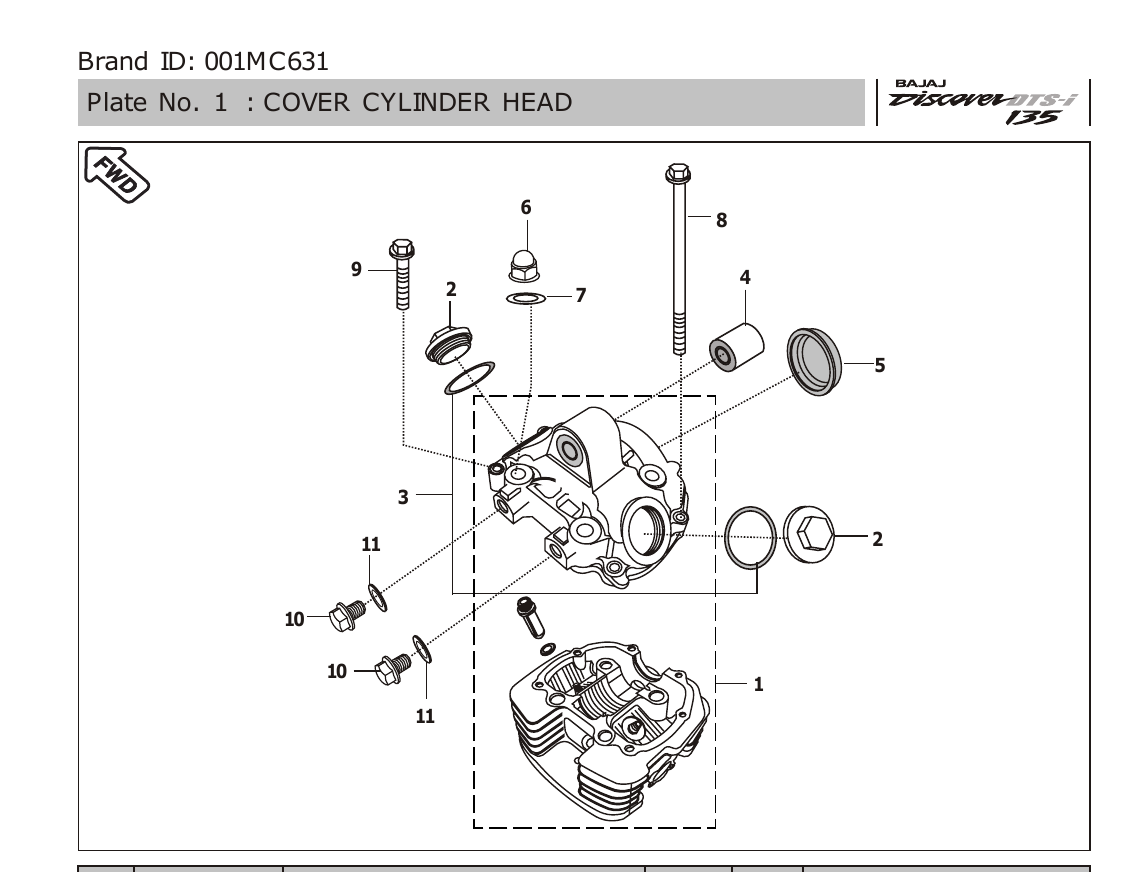

COVER CYLINDER HEAD
JN 5110 06
Head Cylinder with Cover
Ref 1Qty.: 11
DH 1012 72
Plug
Ref 10Qty.: 11
DG 1014 98
Gasket
Ref 11Qty.: 22
DJ 1012 17
Cover Tappet
Ref 2Qty.: 22
36 DS10 01
‘O’ Ring Kit for Cover Cyl. Head
Ref 3Qty.: 11 Ref. Page No. 67
DS 1011 93
Bush Cylinder Head Cover
Ref 4Qty.: 11
DS 1010 96
Camshaft Cap
Ref 5Qty.: 11
39 2647 15
Dommed Cap Nut
Ref 6Qty.: 44
DS 1010 84
Copper Washer
Ref 7Qty.: 44
39 2532 04
Bolt Flange Small
Ref 8Qty.: 22
39 1075 04
Bolt Flange Small
Ref 9Qty.: 44
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JN 5110 06 | Head Cylinder with Cover | 1 | 1 | |
| 10 | DH 1012 72 | Plug | 1 | 1 | |
| 11 | DG 1014 98 | Gasket | 2 | 2 | |
| 2 | DJ 1012 17 | Cover Tappet | 2 | 2 | |
| 3 | 36 DS10 01 | ‘O’ Ring Kit for Cover Cyl. Head | 1 | 1 Ref. Page No. 67 | |
| 4 | DS 1011 93 | Bush Cylinder Head Cover | 1 | 1 | |
| 5 | DS 1010 96 | Camshaft Cap | 1 | 1 | |
| 6 | 39 2647 15 | Dommed Cap Nut | 4 | 4 | |
| 7 | DS 1010 84 | Copper Washer | 4 | 4 | |
| 8 | 39 2532 04 | Bolt Flange Small | 2 | 2 | |
| 9 | 39 1075 04 | Bolt Flange Small | 4 | 4 |
Showing 11 parts in Plate 1
Plate 1
COVER CYLINDER HEAD
JN 5110 06
Head Cylinder with Cover
Ref 1Qty.: 11
DH 1012 72
Plug
Ref 10Qty.: 11
DG 1014 98
Gasket
Ref 11Qty.: 22
DJ 1012 17
Cover Tappet
Ref 2Qty.: 22
36 DS10 01
‘O’ Ring Kit for Cover Cyl. Head
Ref 3Qty.: 11 Ref. Page No. 67
DS 1011 93
Bush Cylinder Head Cover
Ref 4Qty.: 11
DS 1010 96
Camshaft Cap
Ref 5Qty.: 11
39 2647 15
Dommed Cap Nut
Ref 6Qty.: 44
DS 1010 84
Copper Washer
Ref 7Qty.: 44
39 2532 04
Bolt Flange Small
Ref 8Qty.: 22
39 1075 04
Bolt Flange Small
Ref 9Qty.: 44
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JN 5110 06 | Head Cylinder with Cover | 1 | 1 | |
| 10 | DH 1012 72 | Plug | 1 | 1 | |
| 11 | DG 1014 98 | Gasket | 2 | 2 | |
| 2 | DJ 1012 17 | Cover Tappet | 2 | 2 | |
| 3 | 36 DS10 01 | ‘O’ Ring Kit for Cover Cyl. Head | 1 | 1 Ref. Page No. 67 | |
| 4 | DS 1011 93 | Bush Cylinder Head Cover | 1 | 1 | |
| 5 | DS 1010 96 | Camshaft Cap | 1 | 1 | |
| 6 | 39 2647 15 | Dommed Cap Nut | 4 | 4 | |
| 7 | DS 1010 84 | Copper Washer | 4 | 4 | |
| 8 | 39 2532 04 | Bolt Flange Small | 2 | 2 | |
| 9 | 39 1075 04 | Bolt Flange Small | 4 | 4 |
Showing 11 parts in Plate 1
