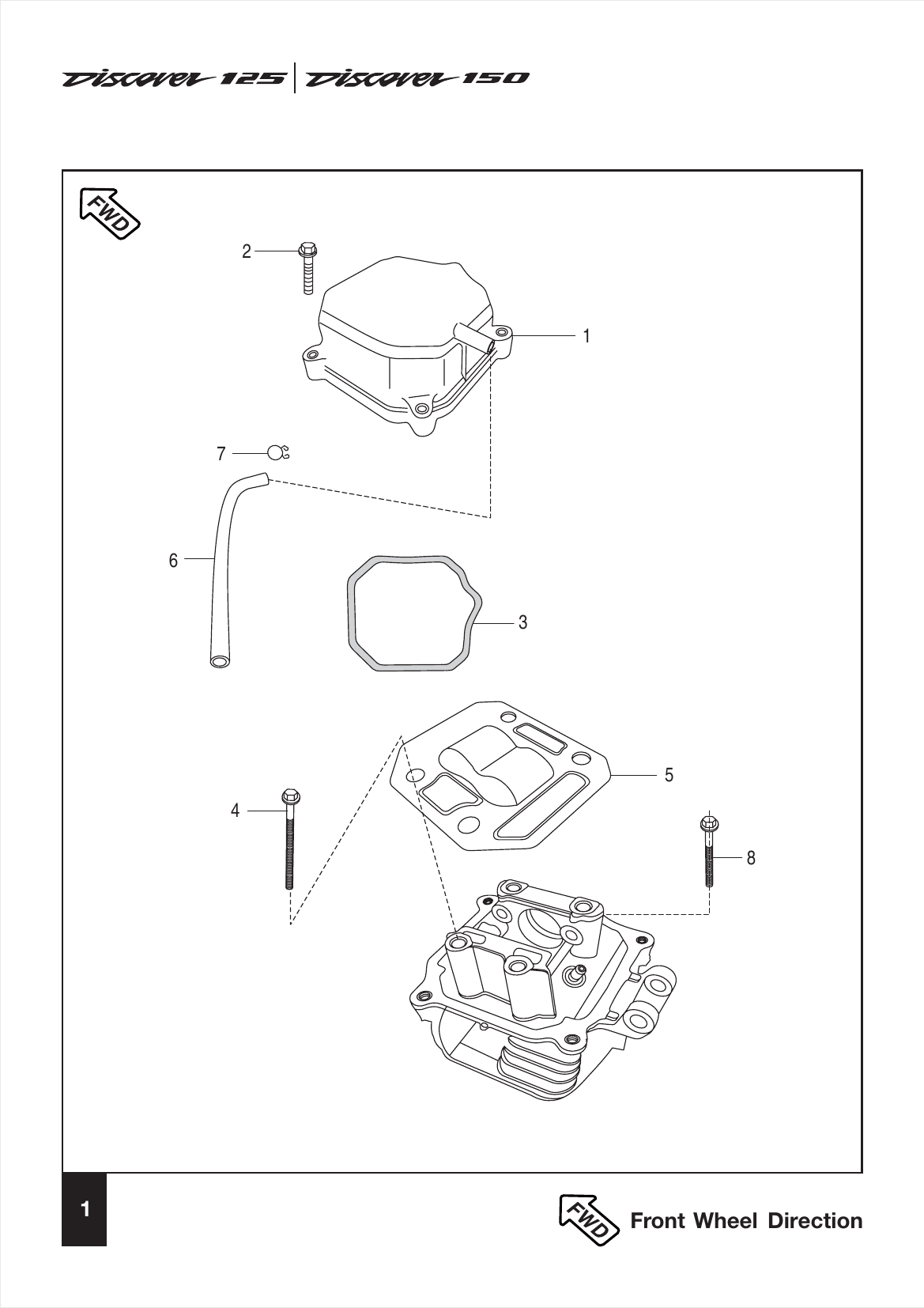

Plate 1
Cover Cylinder Head
JZ 5110 21
Cover Cylinder Head
Ref 1Qty.: 11 1
JZ 5110 29
Cover Cylinder Head
Ref 1Qty.: 11 -- Re-introduced
59 0400 38
Bolt Flange
Ref 2Qty.: 44 4
JD 5110 10
Gasket Head Cover
Ref 3Qty.: 11 1
JA 5110 08
Bolt Head Mounting
Ref 4Qty.: 44 4
JZ 5110 20
Plate Cylinder Head
Ref 5Qty.: 11 1
PA 5110 39
Plate Cylinder Head
Ref 5Qty.: 11 1 Refer Ser Cir-F-35
JZ 5810 04
Hose C’ case Breather
Ref 6Qty.: 11 1
JA 5110 29
Clamp
Ref 7Qty.: 22 2
59 0400 50
Flange Bolt
Ref 8Qty.: 11 1 For Head Mtg.
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JZ 5110 21 | Cover Cylinder Head | 1 | 1 1 | |
| 1 var. of 1 | JZ 5110 29 | Cover Cylinder Head | 1 | 1 -- Re-introduced | |
| 2 | 59 0400 38 | Bolt Flange | 4 | 4 4 | |
| 3 | JD 5110 10 | Gasket Head Cover | 1 | 1 1 | |
| 4 | JA 5110 08 | Bolt Head Mounting | 4 | 4 4 | |
| 5 | JZ 5110 20 | Plate Cylinder Head | 1 | 1 1 | |
| 5 var. of 5 | PA 5110 39 | Plate Cylinder Head | 1 | 1 1 Refer Ser Cir-F-35 | |
| 6 | JZ 5810 04 | Hose C’ case Breather | 1 | 1 1 | |
| 7 | JA 5110 29 | Clamp | 2 | 2 2 | |
| 8 | 59 0400 50 | Flange Bolt | 1 | 1 1 For Head Mtg. |
