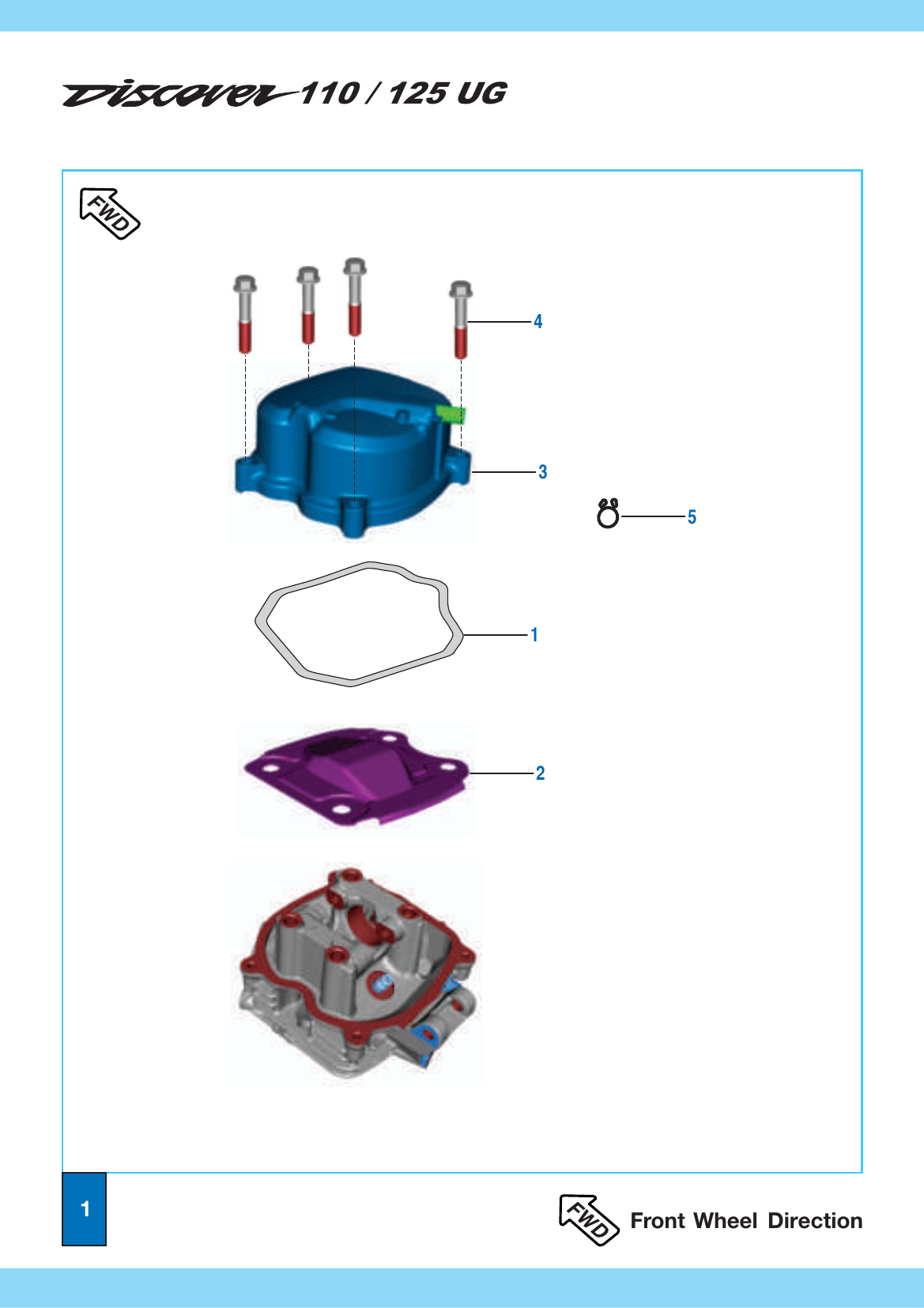

Plate 1
Cover Cylinder Head
JV 5110 12
Gasket cover cylinder head
Ref 11 –
JD 5110 10
Gasket cover cylinder head
Ref 1-- 1
JV 5110 11
Plate cylinder head
Ref 21 --
PA 5110 39
Plate cylinder head
Ref 2-- 1
JV 5110 13
Cover cylinder head complete
Ref 31 –
JZ 5110 21
Cover cylinder head complete
Ref 3-- 1
59 0400 38
Bolt flanged M6
Ref 44 4
JV 5410 07
Bolt flanged - M6 x 1 x L35
Ref 4-- 4 For CBS Model
DG 1210 02
Clamp (Hose c'case breather)
Ref 52 2 2 2
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JV 5110 12 | Gasket cover cylinder head | — | 1 – | |
| 1 var. of 1 | JD 5110 10 | Gasket cover cylinder head | — | -- 1 | |
| 2 | JV 5110 11 | Plate cylinder head | — | 1 -- | |
| 2 var. of 2 | PA 5110 39 | Plate cylinder head | — | -- 1 | |
| 3 | JV 5110 13 | Cover cylinder head complete | — | 1 – | |
| 3 var. of 3 | JZ 5110 21 | Cover cylinder head complete | — | -- 1 | |
| 4 | 59 0400 38 | Bolt flanged M6 | — | 4 4 | |
| 4 var. of 4 | JV 5410 07 | Bolt flanged - M6 x 1 x L35 | — | -- 4 For CBS Model | |
| 5 | DG 1210 02 | Clamp (Hose c'case breather) | — | 2 2 2 2 |
Showing 9 parts in Plate 1
