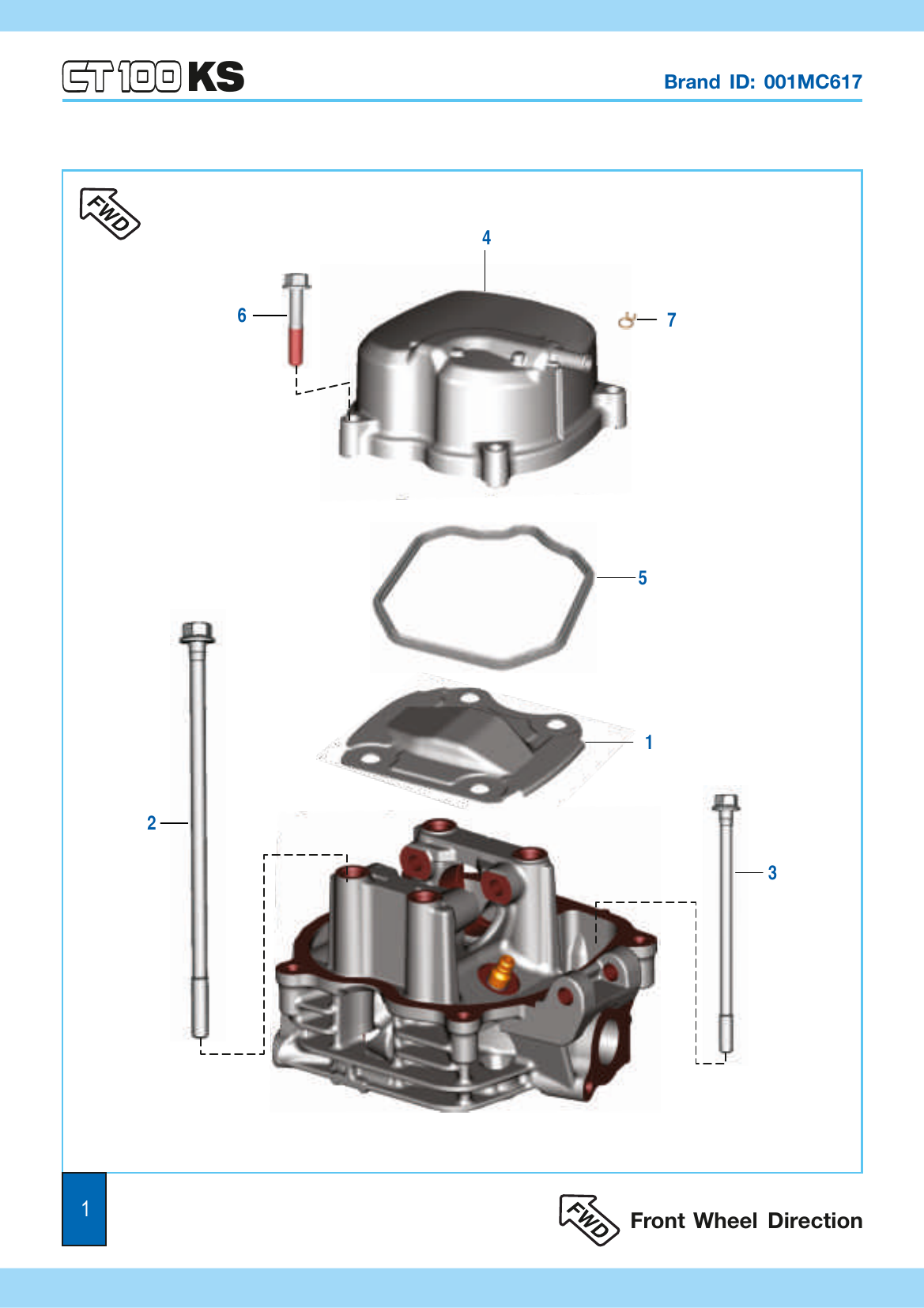

Plate 1
Cover Cylinder Head
JV 5110 11
Plate cylinder head
Ref 11
JV 5410 07
Bolt Flanged - M6 x 1 x L35
Ref 24
JB 5110 15
Bolt head mounting
Ref 31
JV 5110 13
Cover cylinder head complete
Ref 41
JV 5110 12
Gasket cylinder head cover
Ref 51
59 0400 38
Bolt flanged - M6 x 1 x L35
Ref 64
DG 1210 40
Clamp
Ref 71
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JV 5110 11 | Plate cylinder head | — | 1 | |
| 2 | JV 5410 07 | Bolt Flanged - M6 x 1 x L35 | — | 4 | |
| 3 | JB 5110 15 | Bolt head mounting | — | 1 | |
| 4 | JV 5110 13 | Cover cylinder head complete | — | 1 | |
| 5 | JV 5110 12 | Gasket cylinder head cover | — | 1 | |
| 6 | 59 0400 38 | Bolt flanged - M6 x 1 x L35 | — | 4 | |
| 7 | DG 1210 40 | Clamp | — | 1 |
Showing 7 parts in Plate 1
