BAJAJ
SPC CT 110 ES CBS REV 06
808 parts across 49 plates
Color (Transition)Doc: 71120126Rev: REV. 06Date: 2020-09-0149 plates · 7 kits · 17 revisions

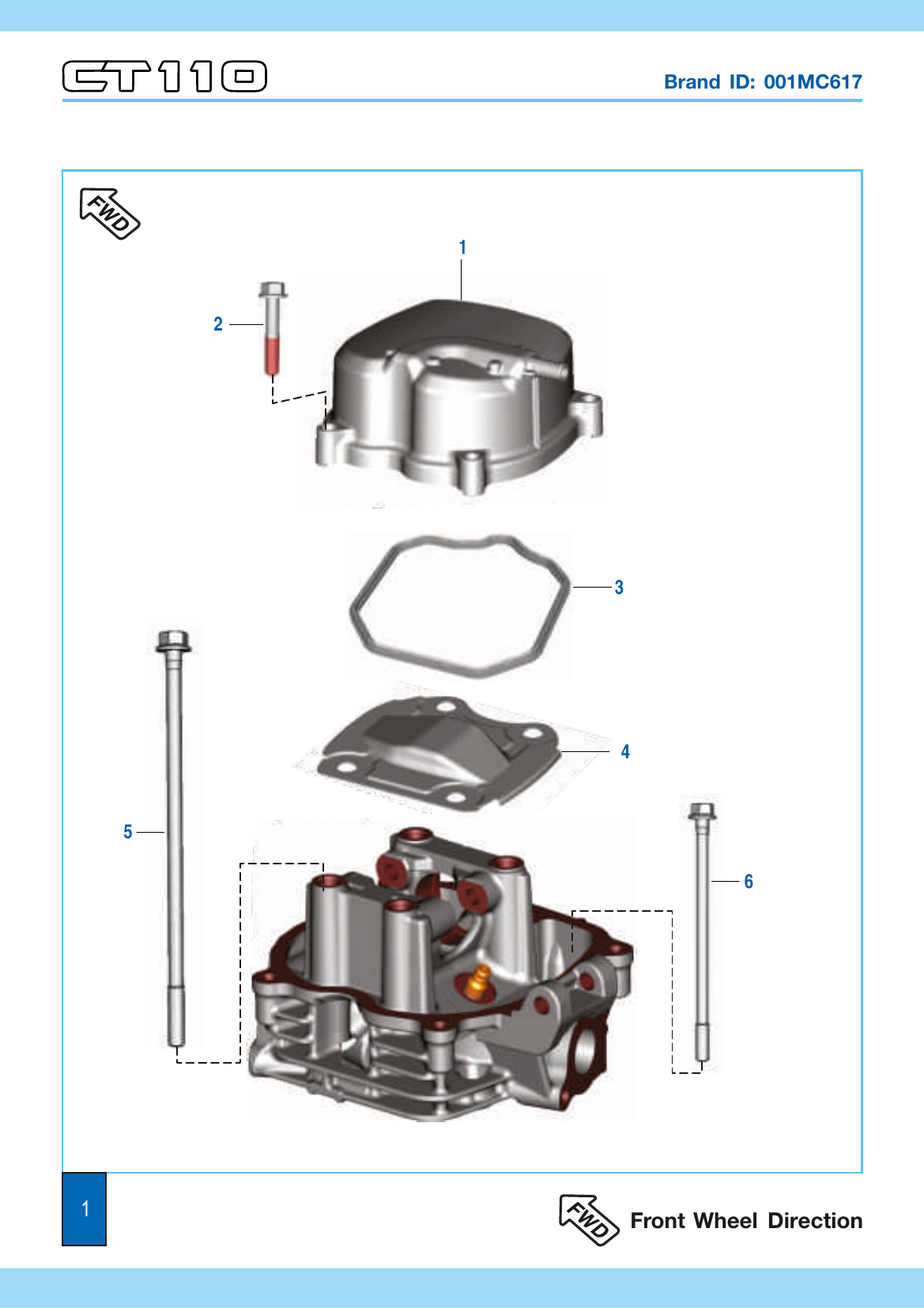

Plate 1
Cover Cylinder Head
JV 5110 13
Cover Cylinder Head Complete
Ref 1Qty.: 1
JV 5410 07
Bolt flanged - M6 x 1 x L35
Ref 2Qty.: 4
JV 5110 12
Gasket Cylinder Head Cover
Ref 3Qty.: 1
JV 5110 11
Plate Cylinder Head
Ref 4Qty.: 1
JB 5110 11
Bolt Head Mounting - M8 x 1.25 x 190L
Ref 5Qty.: 4
JB 5110 15
Bolt Head Mtg
Ref 6Qty.: 1
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JV 5110 13 | Cover Cylinder Head Complete | 1 | ||
| 2 | JV 5410 07 | Bolt flanged - M6 x 1 x L35 | 4 | ||
| 3 | JV 5110 12 | Gasket Cylinder Head Cover | 1 | ||
| 4 | JV 5110 11 | Plate Cylinder Head | 1 | ||
| 5 | JB 5110 11 | Bolt Head Mounting - M8 x 1.25 x 190L | 4 | ||
| 6 | JB 5110 15 | Bolt Head Mtg | 1 |
Showing 6 parts in Plate 1
Plate 1
Cover Cylinder Head
JV 5110 13
Cover Cylinder Head Complete
Ref 1Qty.: 1
JV 5410 07
Bolt flanged - M6 x 1 x L35
Ref 2Qty.: 4
JV 5110 12
Gasket Cylinder Head Cover
Ref 3Qty.: 1
JV 5110 11
Plate Cylinder Head
Ref 4Qty.: 1
JB 5110 11
Bolt Head Mounting - M8 x 1.25 x 190L
Ref 5Qty.: 4
JB 5110 15
Bolt Head Mtg
Ref 6Qty.: 1
| Ref | Part # | Description | Qty. | Remarks | |
|---|---|---|---|---|---|
| 1 | JV 5110 13 | Cover Cylinder Head Complete | 1 | ||
| 2 | JV 5410 07 | Bolt flanged - M6 x 1 x L35 | 4 | ||
| 3 | JV 5110 12 | Gasket Cylinder Head Cover | 1 | ||
| 4 | JV 5110 11 | Plate Cylinder Head | 1 | ||
| 5 | JB 5110 11 | Bolt Head Mounting - M8 x 1.25 x 190L | 4 | ||
| 6 | JB 5110 15 | Bolt Head Mtg | 1 |
Showing 6 parts in Plate 1
